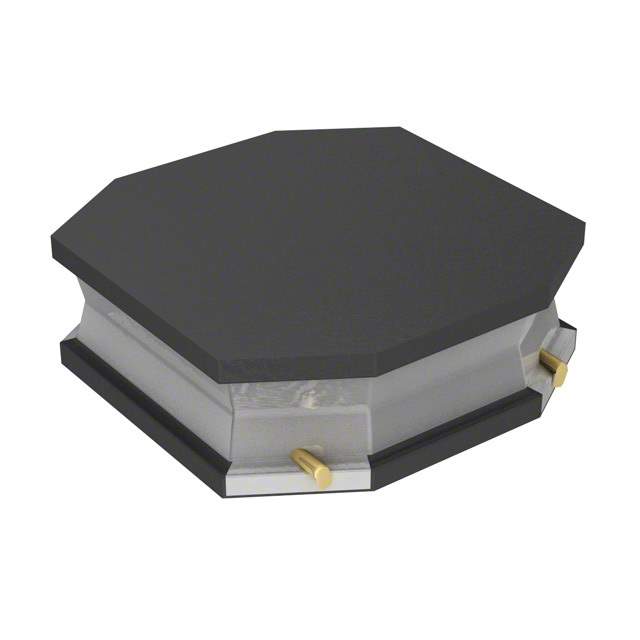

The VLS3010ET-150M is a wire-wound inductor manufactured by TDK Corporation. This inductor is designed for use in power circuits primarily in portable devices, offering a compact size and high efficiency for DC-DC converters and power management applications.

Applications:

• DC-DC Converters
• Power Management Circuits
• Mobile Phones
• Tablet PCs
• Portable Audio Players

Features:

• Small Size (3.0 x 3.0 x 1.0 mm)
• Shielded Construction
• High Inductance
• Low DC Resistance
• High Current Capability

Benefits:

• Efficient Power Conversion
• Reduced Power Loss
• Compact Design for Portable Devices
• Minimized Electromagnetic Interference (EMI)

Detailed Specs:

The VLS3010ET-150M features an inductance of 15 μH. It has a maximum DC resistance (DCR) of 0.24 Ohms and a saturation current of 0.65 A. The self-resonant frequency (SRF) is 20 MHz. This inductor's shielded construction minimizes electromagnetic interference, allowing it to be placed close to other components without causing interference. The small size is ideal for portable electronic devices where space is limited. The inductor is designed to operate over a wide temperature range, typically from -40°C to +125°C. The wire-wound construction contributes to its high inductance and low DC resistance. It is also compliant with RoHS standards. The VLS series offers a variety of inductance values to meet different application requirements. The packaging is suitable for reflow soldering processes, simplifying the manufacturing process.

In DC-DC converter applications, the VLS3010ET-150M helps to efficiently convert voltage levels, providing stable power to various components within the device. Its low DC resistance minimizes power loss, improving the overall efficiency of the power circuit. The shielded construction is particularly important in mobile phones and other wireless devices, where electromagnetic interference can degrade performance.
