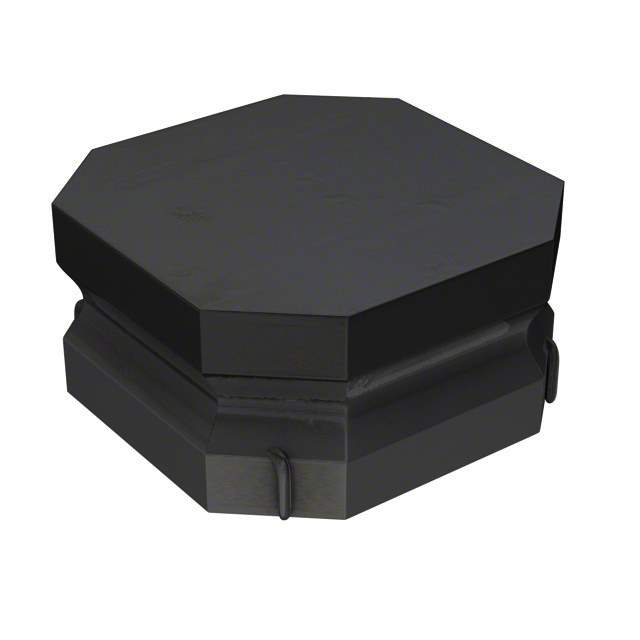

VLS3015T-220MR45 Real Image
Same model may have multiple batches, images only for reference.

VLS3015T-220MR45

Part No VLS3015T-220MR45
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 450MA 622 MOHM
Datasheet
VLS3015T-220MR45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Inductance 22μH
Tolerance ±20%
Current Rating 450mA
Current - Saturation 450mA
DC Resistance (DCR) 622 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.059" (1.50mm)
Win Source Part Number 1117283-VLS3015T-220MR45
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLS3015T-220MR45 CAD Model

Description

The TDK Corporation VLS3015T-220MR45 wirewound inductor is a high-quality component designed for use in a variety of electronic applications.

  • Current Rating: 450mA
  • Inductance: 22μH
  • Mounting Type: Surface mount device (SMD)
  • Height: 0.059" (1.50mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 622 mOhm Max
  • Lifecycle Status: Not recommended for new designs
  • Popularity: Popular choice among electronic enthusiasts and professionals
