Same model may have multiple batches, images only for reference.

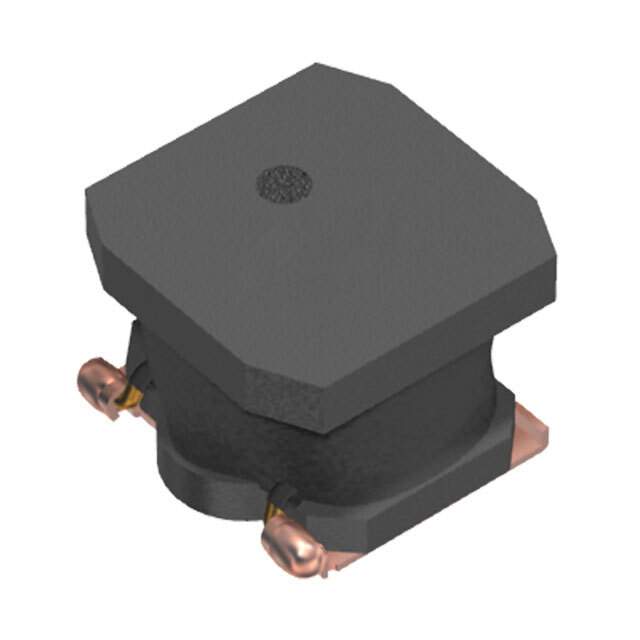

VLS6045EX-680M Real Image
Same model may have multiple batches, images only for reference.

VLS6045EX-680M

Part No VLS6045EX-680M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 68UH 1A 403 MOHM SMD / Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 68μH
Tolerance ±20%
Current Rating (Amps) 1A
Current - Saturation 1.4A
Shielding Shielded
DC Resistance (DCR) 403mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803098-VLS6045EX-680M
Ultra Librarian 3D Model Ultra Librarian VLS6045EX-680M CAD Model

Description

The TDK Corporation VLS6045EX-680M is a wirewound inductor designed for use in electrical circuits. It is shielded to prevent interference and has an inductance of 68μH with a tolerance of ±20%.

  • Inductance: 68μH
  • Tolerance: ±20%
  • Material: Ferrite
  • Current Saturation: 1.4A
  • DC Resistance (DCR): 403mOhm max
  • Mounting: Surface Mount
  • Package: Nonstandard
  • Dimension: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Height: 0.177" (4.50mm)
  • Packaging: Reel
  • Manufacturer Pack Quantity: 1,500
