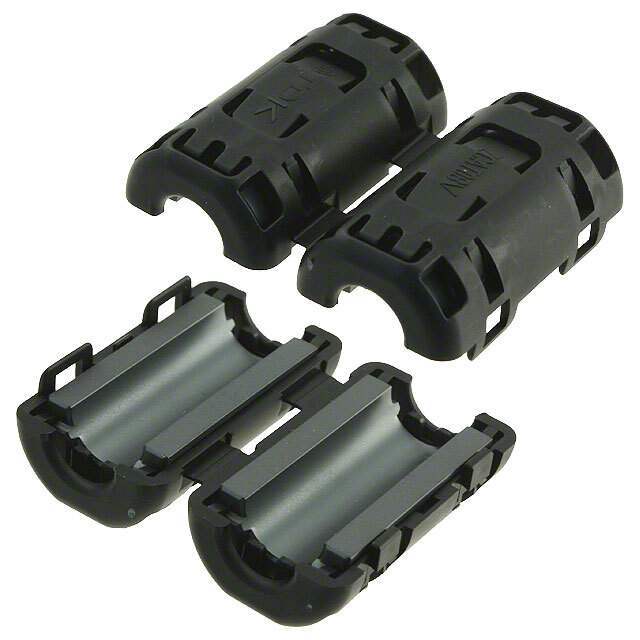

ZCAT08V-BK TDK Corporation
Same model may have multiple batches, images only for reference.

ZCAT08V-BK

Part No ZCAT08V-BK
Manufacturer TDK Corporation
Catalog Cable Ferrites
Description FERRITE CORE 120 OHM HINGED 8MM
Datasheet
ZCAT08V-BK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206314-ZCAT08V-BK
Manufacturer TDK Corporation
Category Filters-Cable Ferrites
Series ZCAT-V
Package Bulk
Product Status Active
Type Round
Design Hinged (Snap On)
Inner Dimension 0.315" Dia (8.00mm)
Outer Dimension 0.744" W x 0.724" H (18.90mm x 18.40mm)
Mounting Type Free Hanging
Ultra Librarian 3D Model Ultra Librarian ZCAT08V-BK CAD Model

Description

FEATURES<br /> • Can easily be attached without cutting the cable. • Possesses better mechanical strength and operational temperature range (–40 to + 125°C) than existing products. • The plastic case has a self-sustaining mechanism that prevents slipping on the cable after being clamped. • Possesses excellent high-frequency noise absorption effect. • Works against common mode noise, allowing for noise suppression without affecting signal quality. • Effective for EMS (Electromagnetic Susceptibility), immunity against surges/noise.
