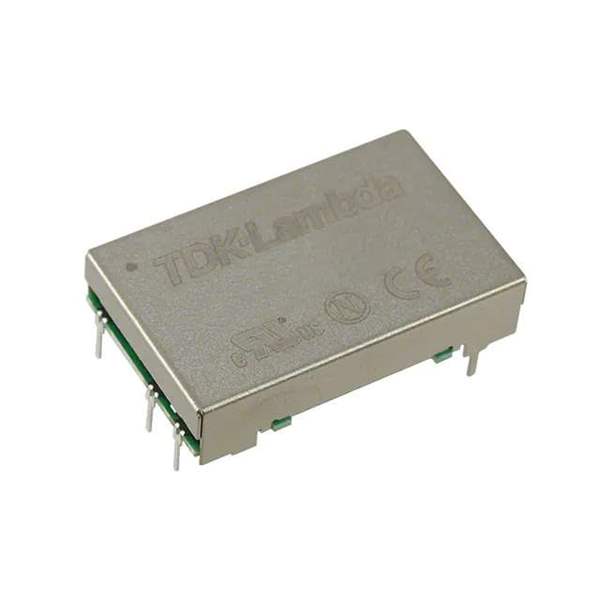

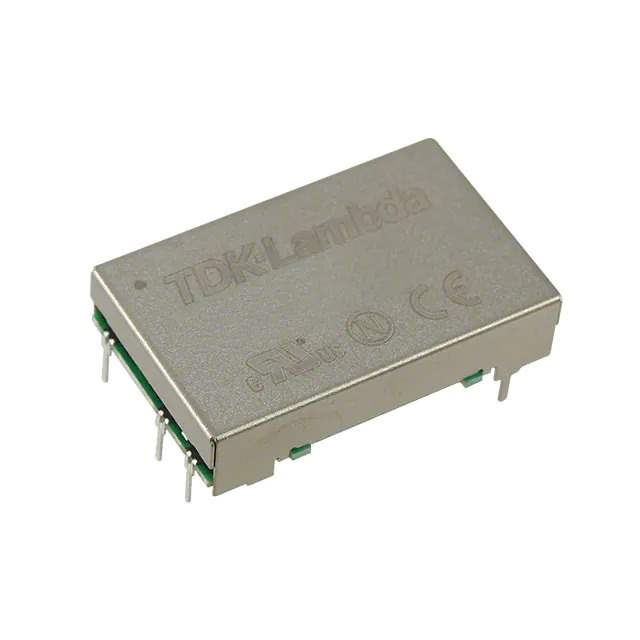

Same model may have multiple batches, images only for reference.

CC10-0512DF-E

Name: CC10-0512DF-E
Brand: TDK-Lambda Americas Inc.
SKU: 576695
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	CC10-0512DF-E
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CNVRT +/-12V TO +/-15V 10W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc.
Series	CC-E (10W)
Package	Tray
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	12 ~ 15V
Voltage - Output 2	-12 ~ -15V
Current - Output (Max)	400mA, 400mA
Power (Watts)	10 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	7-DIP Module
Size / Dimension	1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm)
Control Features	Enable, Active Low
Base Product Number	CC10-0512
Standard Package	10 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	576695-CC10-0512DF-E
Ultra Librarian 3D Model	Ultra Librarian CC10-0512DF-E CAD Model

Alternative Products

Description

The CC10-0512DF-E is a 10W isolated module DC-DC converter.

Series: CC-E
Package: Tray
Application: Board Mount, ITE (Commercial)
Size: 1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm)
Package: 7-DIP Module
Power: 10W
Input Voltage: 4.5V to 9V
Output Voltage: 12V to 15V and -12V to -15V
Output Current: 400mA (each output)
Manufacturer: TDK-Lambda Americas Inc.
Status: Active
ECCN: EAR99
