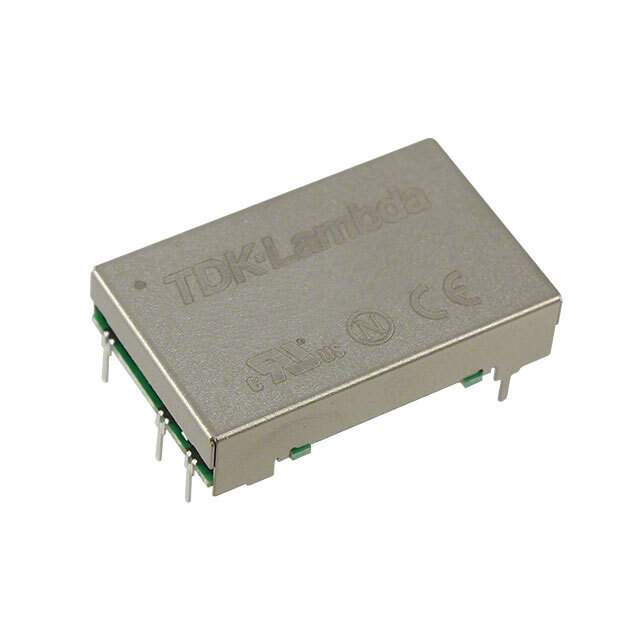

The CC10-1205SF-E is a DC-DC converter manufactured by TDK-Lambda Americas Inc. It is a compact, board-mountable power supply designed to convert a DC voltage to another DC voltage. These converters are typically used in applications requiring isolated or regulated power.

Applications

• Isolated power supplies for industrial automation equipment.
• Powering sensors and transducers in control systems.
• Providing isolated power in medical devices.
• Driving gate drivers in power electronics applications.
• Powering communication interfaces like RS-485 or CAN bus.

Features

• Input Voltage Range: Typically designed for a specific input voltage range (e.g., 9-18VDC, often 12VDC nominal).
• Output Voltage: Provides a fixed output voltage (e.g., 5VDC).
• Isolation: Offers galvanic isolation between input and output.
• Compact Size: Designed for board mounting in space-constrained applications.
• Efficiency: High efficiency to minimize power loss and heat generation.
• Overload Protection: Includes protection against overloads and short circuits.
• Thermal Protection: Protection against overheating.

Benefits

• Isolation: Provides electrical isolation for safety and noise reduction.
• Stable Output: Regulated output voltage ensures consistent performance of connected devices.
• Compact Design: Saves space on printed circuit boards.
• Reliable Operation: Built-in protection features enhance reliability and prevent damage.
• Easy Integration: Designed for easy board mounting and integration into existing systems.

Technical Specifications

While specific technical specifications vary based on the exact model and configuration, the following are typical parameters:

Input Voltage: 9-18VDC (Typical 12VDC) Output Voltage: 5VDC Output Current: Up to 2A (depending on model) Isolation Voltage: Typically 1500VDC or higher Efficiency: 80% or higher Operating Temperature: -40°C to +85°C (depending on model) Package Style: Through-hole or Surface Mount

The CC10-1205SF-E DC-DC converter is suitable for a wide range of industrial, medical, and communication applications that require isolated and regulated power. Its compact size and protection features make it a reliable choice for demanding environments.
