Same model may have multiple batches, images only for reference.

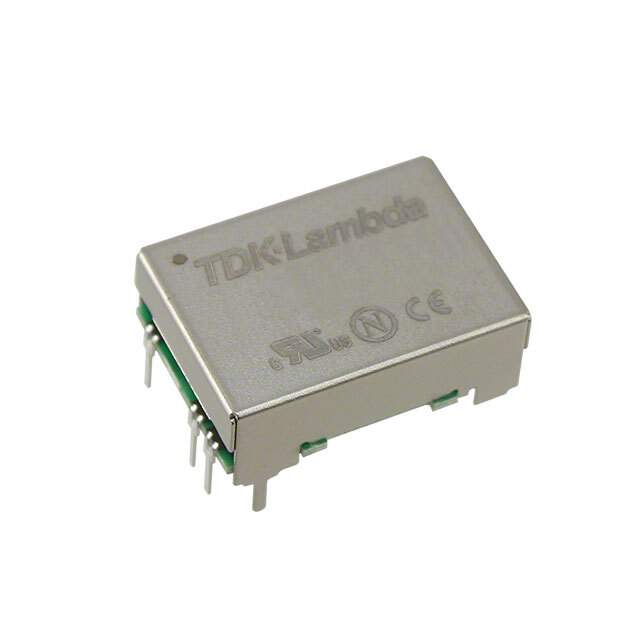

CC3-0505SF-E Real Image
Same model may have multiple batches, images only for reference.

CC3-0505SF-E

Part No CC3-0505SF-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 3W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Estimated Pruduction Lead Time 25 Weeks
Features Isolated Module DC DC Converter Output 5V - - 600mA 4.5V - 9V Input
Manufacturer TDK-Lambda Americas Inc.
Series CC-E (3W)
Package Tray
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole
Package 7-DIP Module
Family Name CC3-0505
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 445-2464, CC30505SFE
Quantity per package 10
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866023-CC3-0505SF-E
Ultra Librarian 3D Model Ultra Librarian CC3-0505SF-E CAD Model

Description

The TDK-Lambda CC3-0505SF-E is a DC-DC converter designed for use in a wide range of applications.

  • Type: Isolated Module
  • Input Voltage Range: 4.5V to 9V
  • Output Voltage: 5V
  • Maximum Output Current: 600mA
  • Maximum Power Output: 3W
  • Compliance: RoHS
  • Suitable for: Industrial and Telecommunications Applications
