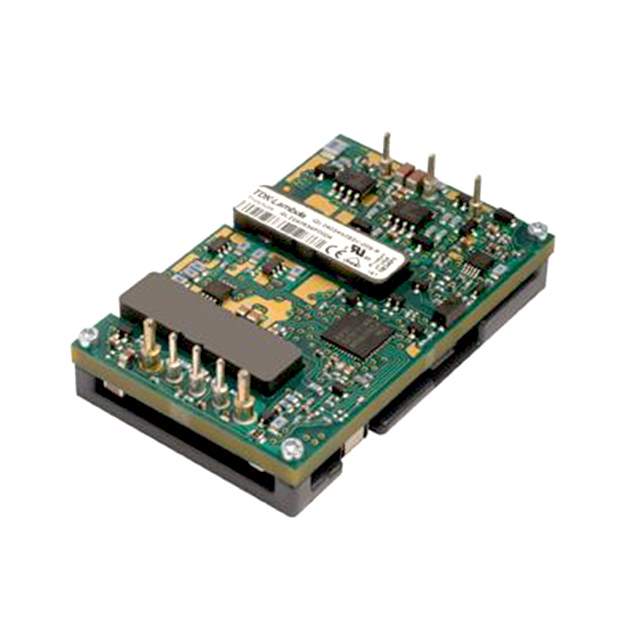

Same model may have multiple batches, images only for reference.

IQL48060A033V-003-R

Name: IQL48060A033V-003-R
Brand: TDK-Lambda Americas Inc.
SKU: 1223131
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IQL48060A033V-003-R
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 198W / Isolated Module DC DC Converter 1 Output 3.3V 60A 36V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	iQL (198W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	3.3V
Current - Output (Max)	60A
Power (Watts)	198 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating	-40°C ~ 125°C
Efficiency	91%
Mounting Type	Through Hole
Package / Case	Quarter Brick
Dimension	2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm)
Supplier Device Package	Quarter Brick
Base Product Number	IQL48060
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Standard Package	72
Win Source Part Number	1223131-IQL48060A033V-003-R
Ultra Librarian 3D Model	Ultra Librarian IQL48060A033V-003-R CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc iQL48060A033V-003-R is a power supply module with a 198W power rating.

Type: Isolated Module
Voltage Isolation: 1.5 kV
Voltage Input Range: 36V to 75V
Features: Remote On/Off, Overcurrent Protection, Over-Temperature Protection, Overvoltage Protection
Current Output: 60A
Efficiency: 91%
Mounting: Quarter Brick
Applications: ITE (Commercial)
Temperature Range: -40°C to 125°C
Size: 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm)
