Same model may have multiple batches, images only for reference.

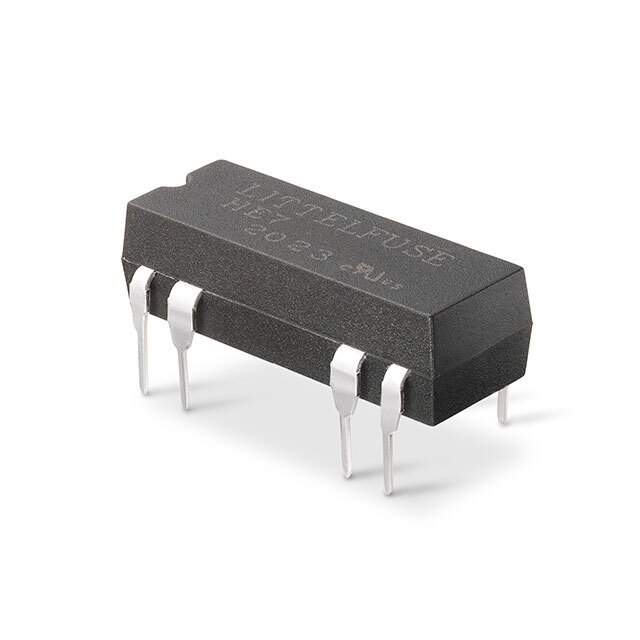

HE722A1200 Real Image
Same model may have multiple batches, images only for reference.

HE722A1200

Part No HE722A1200
Manufacturer Littelfuse Inc.
Catalog Signal Relays, Up to 2 Amps
Description RELAY REED DPST 500MA 12V / Reed Relay 12VDC 500Ohm 0.5A DPST-NO( (19.5mm 9.52mm 5.5mm)) THT Dry
Datasheet
HE722A1200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Littelfuse Inc.
Series HE700
Packaging Tube
Relay Type Reed
Coil Type Non Latching
Coil Current 24mA
Coil Voltage 12VDC
Contact Form DPST (2 Form A)
Contact Rating (Current) 500mA
Switching Voltage 200VDC - Max
Turn On Voltage (Maximum) 8 VDC
Turn Off Voltage (Minimum) 1 VDC
Operate Time 1ms
Release Time 1ms
Mounting Style Through Hole
Termination Style PC Pin
Coil Resistance 500 Ohms
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 775839-HE722A1200
Popularity Medium
Supply and Demand Status Limited
Family Name HE700
Introduction Date February 19, 2004
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HE722A1200 CAD Model

Description

The Littelfuse Inc. This component is a DPST (2 Form A) reed relay that can handle a contact rating of 500mA.

  • Contact Form: DPST (2 Form A)
  • Contact Rating: 500mA
  • Coil Voltage: 12VDC
  • Coil Resistance: 500 Ohms
  • Operate Time: 1ms
  • Release Time: 1ms
  • Mounting: Through-Hole
  • Supply and Demand Status: Limited
