Same model may have multiple batches, images only for reference.

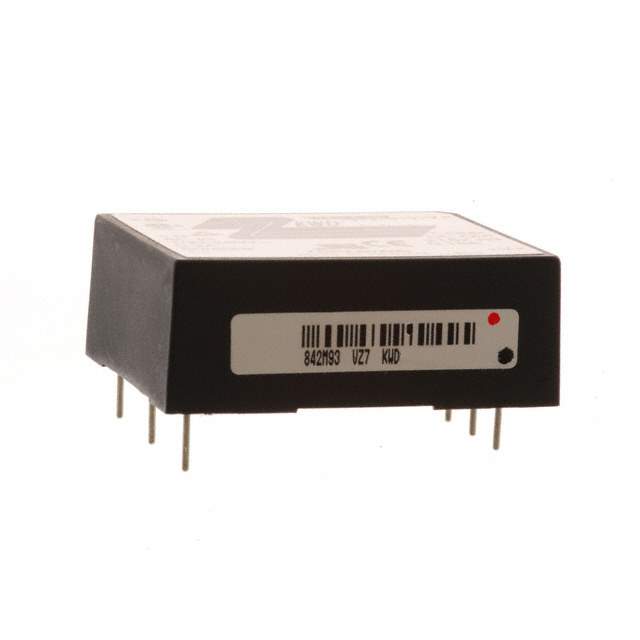

KWD15-1515 Real Image
Same model may have multiple batches, images only for reference.

KWD15-1515

Part No KWD15-1515
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER +/-15V 15W  /  Enclosed AC DC Converters 2 Output 15V -15V 520mA, 520mA 85 ~ 265 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Mfr TDK-Lambda Americas Inc
Series KW (15W)
Package Bulk
Product Status Not For New Designs
Type Enclosed
Number of Outputs 2
Voltage - Input 85 ~ 265 VAC
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 520mA, 520mA
Power (Watts) 15 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -10°C ~ 70°C (With Derating)
Efficiency 73%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 2.75" L x 1.89" W x 0.93" H (70.0mm x 48.0mm x 23.5mm)
Approval Agency CE, CSA, TUV, UL
Line Regulation 0.4%
Load Regulation 0.8%
Weight 0.331 lb (150.14 g)
Base Product Number KWD15
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9510
Other Names 285-1425,KWD151515
Standard Package 1
Win Source Part Number 1231079-KWD15-1515
Ultra Librarian 3D Model Ultra Librarian KWD15-1515 CAD Model

Description

The TDK-Lambda Americas Inc KW (15W) AC/DC converter is a universal input enclosed type power supply with a bulk package.

  • Application: ITE (Commercial)
  • Power Output: 15W
  • Voltage Input: 85 ~ 265 VAC
  • Weight: 0.331 lb (150.14 g)
  • Outputs: Two
  • Maximum Output Current: 520mA (Both Outputs)
  • Voltage Output (Output 1): 15V
  • Voltage Output (Output 2): -15V
  • Efficiency: 73%
  • Line Regulation: 0.4%
  • Load Regulation: 0.8%
  • Temperature Range: -10°C ~ 70°C (With Derating)
  • Mounting: Through Hole
  • Package/Case: 6-DIP Module (2.75" L x 1.89" W x 0.93" H (70.0mm x 48.0mm x 23.5mm))
  • Standard Package: 1
  • Approvals: CE, CSA, TUV, UL
