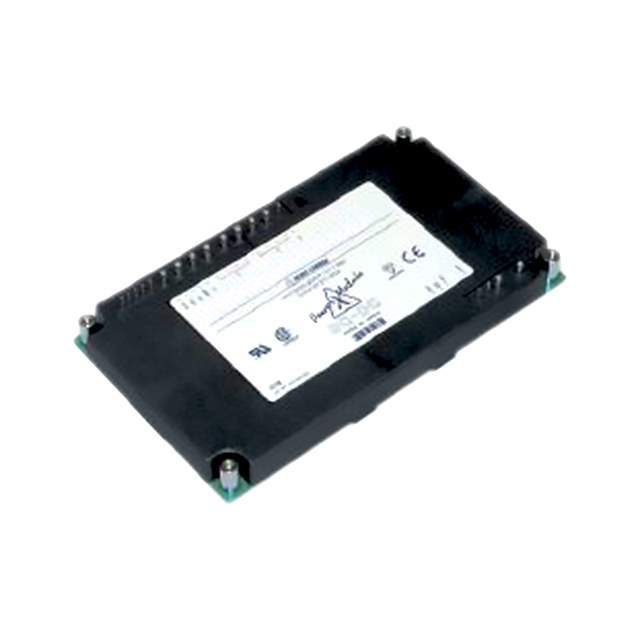

Same model may have multiple batches, images only for reference.

PH300F48-5

Name: PH300F48-5
Brand: TDK-Lambda Americas Inc.
SKU: 791752
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PH300F48-5
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONVERT DC-DC 5V 300W 60A / Module DC-DC 48VIN 1-OUT 5V 60A 300W 18-Pin
Datasheet	PH300F48-5 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	TDK-Lambda Americas Inc.
Series	PH-F
Packaging	Bulk
Part Status	Obsolete(EOL)
Type	Isolated Module
Number of Outputs	1
Input Voltage MIN	36V
Voltage Input MAX	76V
Voltage - Output 1	5V
Current - Output (Maximum)	60A
Power (Watts)	300W
Voltage - Isolation	3kV (3000V)
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Operating Temperature Range	-20°C ~ 85°C
Mounting Style	Through Hole
Package	Module
Dimension	5.75" L x 3.39" W x 0.50" H (146.0mm x 86.0mm x 12.7mm)
Win Source Part Number	791752-PH300F48-5
Popularity	Medium
Supply and Demand Status	Limited
Family Name	PH300F48-5
Introduction Date	March 26, 2002
ECCN	EAR99
Country of Origin	Japan, Malaysia
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian PH300F48-5 CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc. PH300F48-5 Isolated Module is a power supply board mount with a power of 300W and a voltage isolation of 3kV (3000V). The module has a through-hole mounting style and features remote On/Off, OCP, and OVP.

Power: 300W
Voltage Isolation: 3kV (3000V)
Mounting Style: Through Hole
Features: Remote On/Off, OCP, OVP
Applications: ITE (Commercial)
Package Dimensions: 5.75 inches L x 3.39 inches W x 0.50 inches H (146.0mm x 86.0mm x 12.7mm)
Input Voltage: 36V to 76V
Status: Obsolete (EOL)
Introduction Date: March 26, 2002
Supply and Demand Status: Limited
