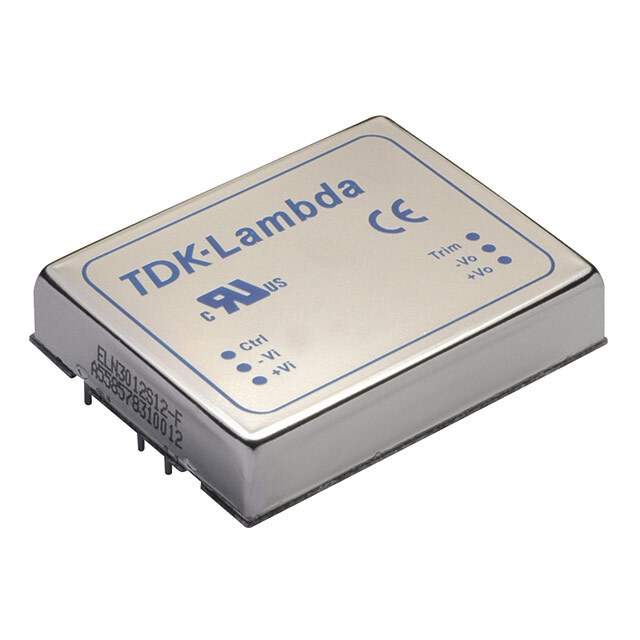

PXE30-48D12 Real Image1 PXE30-48D12 Real Image2
Same model may have multiple batches, images only for reference.
PXE30-48D12 Real Image1 PXE30-48D12 Real Image2
PXE30-48D12 Real Image1 PXE30-48D12 Real Image2
Same model may have multiple batches, images only for reference.

PXE30-48D12

Part No PXE30-48D12
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 30W / Isolated Module DC DC Converter 2 Output 12V -12V 1.25A, 1.25A 36V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc.
Series PXE (30W)
Package Bulk
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Voltage - Output 3 -
Current - Output (Max) 1.25A, 1.25A
Power (Watts) 30 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 100°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 8-DIP Module, 7 Leads
Size / Dimension 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm)
Base Product Number PXE30
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Standard Package 1 pcs
Win Source Part Number 1383229-PXE30-48D12
Ultra Librarian 3D Model Ultra Librarian PXE30-48D12 CAD Model

Description

The 1383229-PXE30-48D12 is an isolated DC-DC converter module from the PXE (30W) series by TDK-Lambda Americas Inc.

  • Dimensions: 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm)
  • Application: ITE (Commercial)
  • Outputs: Two outputs
  • Power Rating: 30W
  • Voltage Isolation: 1.6 kV
  • Features: Remote on/off, overcurrent protection (OCP), overvoltage protection (OVP), and short circuit protection (SCP)
  • Mounting: Through-hole
  • Operating Temperature: -40°C to 100°C
