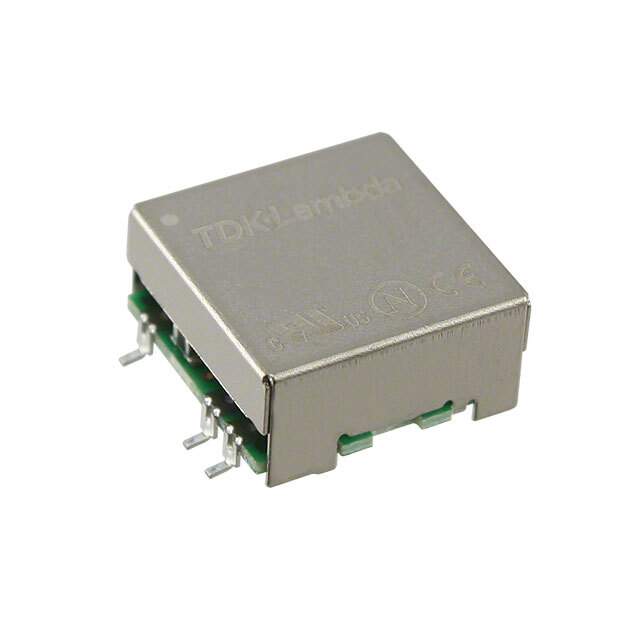

CC1R5-2405SR-E Real Image CC1R5-2405SR-E Real Image
Same model may have multiple batches, images only for reference.
CC1R5-2405SR-E Real Image CC1R5-2405SR-E Real Image
CC1R5-2405SR-E Real Image CC1R5-2405SR-E Real Image
Same model may have multiple batches, images only for reference.

CC1R5-2405SR-E

Part No CC1R5-2405SR-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 300mA 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (1.5W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 300mA
Power (Watts) 1 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 7-SMD Module
Size / Dimension 0.65" L x 0.65" W x 0.35" H (16.5mm x 16.6mm x 8.8mm)
Control Features Enable, Active Low
Base Product Number CC1R5
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1340254-CC1R5-2405SR-E
Ultra Librarian 3D Model Ultra Librarian CC1R5-2405SR-E CAD Model

Description

The CC1R5-2405SR-E is a 1W isolated module DC-DC converter manufactured by TDK-Lambda Americas Inc.

  • Size / Dimension: 0.65" L x 0.65" W x 0.35" H (16.5mm x 16.6mm x 8.8mm)
  • Package / Case: 7-SMD Module
  • Voltage - Input (Min): 18V
  • Voltage - Input (Max): 36V
  • Voltage - Output 1: 5V
  • Current - Output (Max): 300mA
  • Control Features: Enable, Active Low
  • Applications: ITE (Commercial)
