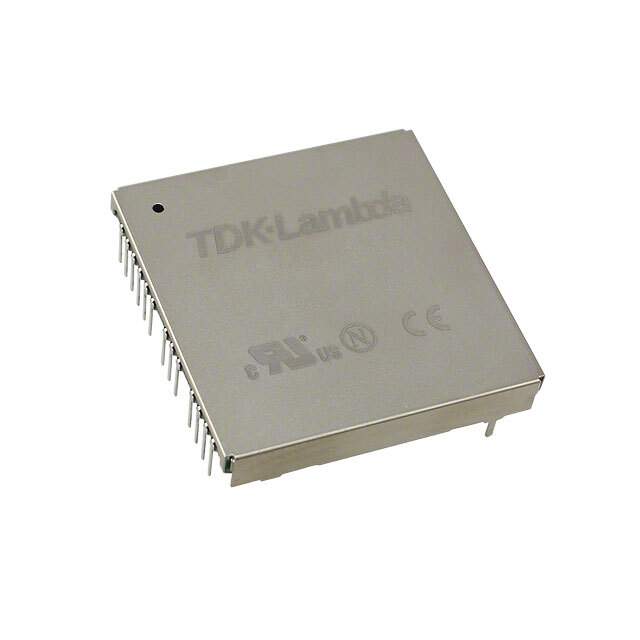

CC25-2405SF-E Real Image
Same model may have multiple batches, images only for reference.

CC25-2405SF-E

Part No CC25-2405SF-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 25W / Isolated Module DC DC Converter 1 Output 5V 5A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (25W)
Package Tray
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 5A
Power (Watts) 25 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 90%
Mounting Type Through Hole
Package / Case 30-DIP Module, 25 Leads
Size / Dimension 1.77" L x 1.70" W x 0.28" H (44.9mm x 43.2mm x 7.0mm)
Control Features Enable, Active High
Standard Package 10
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1336780-CC25-2405SF-E
Ultra Librarian 3D Model Ultra Librarian CC25-2405SF-E CAD Model

Description

The CC25-2405SF-E is a type of isolated module DC-DC converter manufactured by TDK-Lambda Americas Inc. TDK-Lambda Americas Inc.

  • Type: Isolated Module DC-DC Converter
  • Series: CC-E (25W)
  • Power: 25W
  • Package: Tray
  • Standard Package: 10 Units
  • Application: ITE (Commercial)
