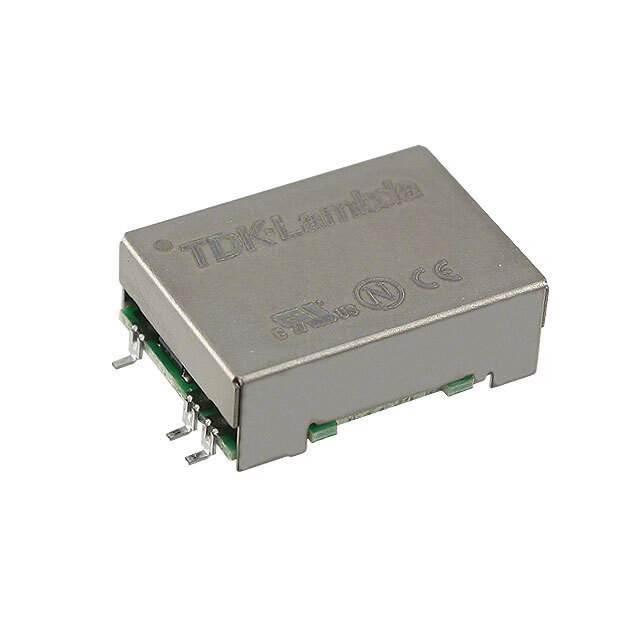

Same model may have multiple batches, images only for reference.

CC3-2412DR-E

Name: CC3-2412DR-E
Brand: TDK-Lambda Americas Inc.
SKU: 1337645
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	CC3-2412DR-E
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CNVRTR +/-12V TO +/-15V 3W / Isolated Module DC DC Converter 2 Output 12 ~ 15V -12 ~ -15V 125mA, 125mA 18V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	CC-E (3W)
Package	Tray
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12 ~ 15V
Voltage - Output 2	-12 ~ -15V
Current - Output (Max)	125mA, 125mA
Power (Watts)	3 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	7-SMD Module
Size / Dimension	0.90" L x 0.65" W x 0.35" H (22.9mm x 16.6mm x 8.8mm)
Control Features	Enable, Active Low
Base Product Number	CC3-2412
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1337645-CC3-2412DR-E
Ultra Librarian 3D Model	Ultra Librarian CC3-2412DR-E CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc CC-E (3W) series isolated module DC-DC converter is a reliable and efficient power supply that is perfect for your electronic devices.

Control Features: Enable, Active Low
Voltage Isolation: 500 V
Package: 10
Power Rating: 3W
Outputs: 2
Maximum Current Output: 125mA each
Package/Case: 7-SMD Module
Temperature Range: -40°C to 85°C
