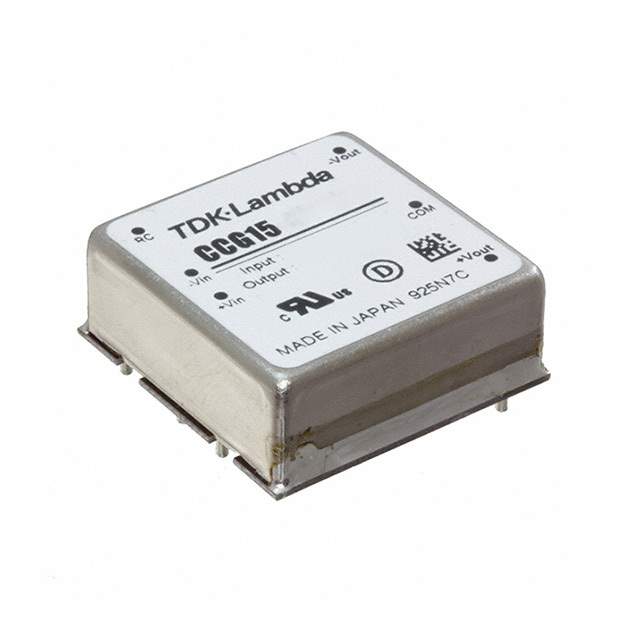

Same model may have multiple batches, images only for reference.

CCG15-24-15S

Name: CCG15-24-15S
Brand: TDK-Lambda Americas Inc.
SKU: 1338327
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CCG15-24-15S
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 15W / Isolated Module DC DC Converter 1 Output 15V 1A 9V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	CCG15 (15W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Current - Output (Max)	1A
Power (Watts)	15 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	88%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features	Enable, Active Low
Base Product Number	CCG15
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1338327-CCG15-24-15S
Ultra Librarian 3D Model	Ultra Librarian CCG15-24-15S CAD Model

Alternative Products

Description

This is a DC-DC converter that belongs to the category of power supplies.

Category: Power Supplies
Part Number: 1338327-CCG15-24-15S
Series: CCG15 (15W)
Type: Isolated Module
Power Rating: 15W
Size/Dimension: 1.00 inch L x 1.00 inch W x 0.39 inch H
Voltage Isolation: 1.5 kV
Output: Single
Maximum Current: 1A
Input Voltage: 9V to 36V
Output Voltage: 15V
Efficiency: 88%
Features: Remote On/Off, Overcurrent Protection (OCP), Overvoltage Protection (OVP)
Mounting Type: Through-Hole
Package/Case: 6-DIP Module
Operating Temperature: -40°C to 85°C
Manufacturer: TDK-Lambda Americas Inc
ECCN: EAR99
