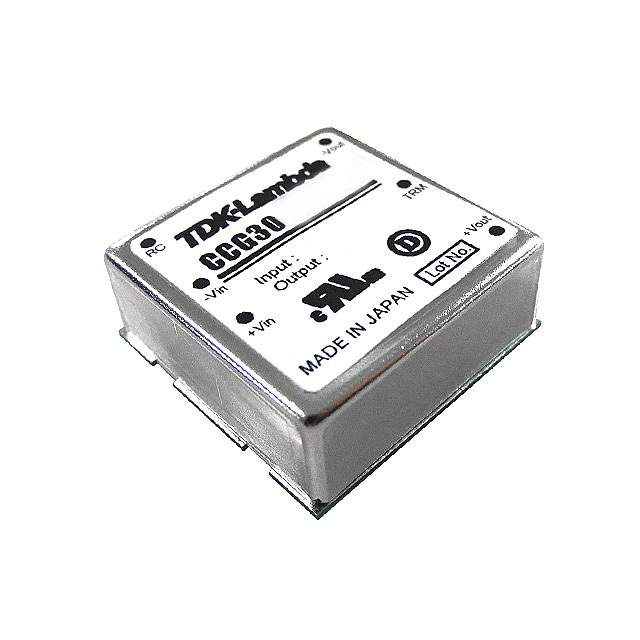

Same model may have multiple batches, images only for reference.

CCG30-24-12D

Name: CCG30-24-12D
Brand: TDK-Lambda Americas Inc.
SKU: 1339029
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CCG30-24-12D
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 30W / Isolated Module DC DC Converter 2 Output 12V -12V 1.25A, 1.25A 9V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	CCG30 (30W)
Package	Tray
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	1.25A, 1.25A
Power (Watts)	30 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	89%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number	CCG30
Standard Package	1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1339029-CCG30-24-12D
Ultra Librarian 3D Model	Ultra Librarian CCG30-24-12D CAD Model

Alternative Products

Description

The CCG30 series isolated module DC-DC converter from TDK-Lambda is a 30W converter with a remote on/off feature, OCP, and OVP.

Series: CCG30
Type: Isolated Module DC-DC Converter
Power: 30W
Features: Remote On/Off, OCP, OVP
Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Voltage Input: 9V to 36V
Outputs: 2
Maximum Output Current: 1.25A per output
Voltage Output 1: 12V
Voltage Output 2: -12V
Efficiency: 89%
Application: ITE (Commercial)
Mounting Type: Through-Hole
Package/Case: 6-DIP Module
Voltage Isolation: 1.5kV
Operating Temperature: -40°C to 85°C
Standard Package: 1
