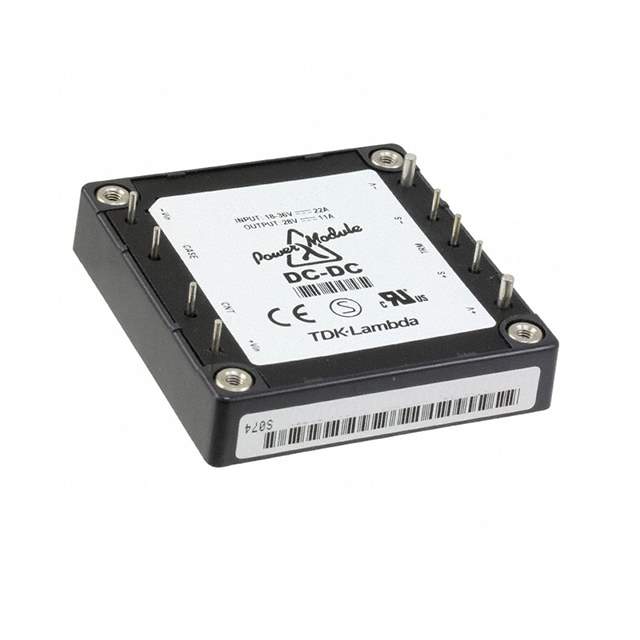

Same model may have multiple batches, images only for reference.

PAH350S48-28/T

Name: PAH350S48-28/T
Brand: TDK-Lambda Americas Inc.
SKU: 1335285
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PAH350S48-28/T
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 28V 350W / Isolated Module DC DC Converter 1 Output 28V 12.5A 36V - 76V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	TDK-Lambda Americas Inc
Packaging	Bulk
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	76V
Voltage - Output 1	28V
Current - Output (Max)	12.5A
Power (Watts)	350 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	92%
Mounting	Through Hole
Case / Package	9-DIP Module, 1/2 Brick
Size / Dimension	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Control Features	Enable, Active Low
Base Product Number	PAH350
RoHS Status	RoHS Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	PAH350S48-28/T,PAH350S48-28-T,PAH350S4828/T-ND,285-PAH350S48-28/T,PAH350S4828/T
Standard Package	1
Win Source Part Number	1335285-PAH350S48-28/T
Ultra Librarian 3D Model	Ultra Librarian PAH350S48-28/T CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc PAH350S48-28/T is a 350W isolated module DC-DC converter.

Power: 350W
Mounting: Through-hole
Applications: ITE (Commercial)
Remote on/off: Yes
OCP: Yes
OVP: Yes
Size/Dimension: 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Voltage - Isolation: 1.5 kV
Number of Outputs: 1
Current - Output (Max): 12.5A
Voltage - Input (Min): 36V
Voltage - Input (Max): 76V
Voltage - Output 1: 28V
Efficiency: 92%
Temperature Range - Operating: -40°C to 100°C
Case/Package: 9-DIP module, 1/2 brick
MSL Level: N/A
REACH: REACH unaffected
HTSUS: 8504.40.9580
