Analog Devices Inc. LT8646SEV#WPBF Overview

The LT8646SEV#WPBF is a high-performance, synchronous step-down switching regulator from Analog Devices Inc., engineered to maintain a low electromagnetic emission and high efficiency across a wide range of load currents. This makes it an ideal choice for sensitive applications where noise and efficiency are critical factors, such as automotive, industrial, and telecommunications systems.

Built on a Silent Switcher® 2 architecture, the LT8646SEV#WPBF minimizes EMI emissions through its internal bypass capacitors and optimized switching edges. This innovative design allows the device to meet stringent EMC requirements without the need for external noise reduction strategies, simplifying the design and reducing overall system cost.

The switching frequency is programmable and synchronizable from 200kHz to 3MHz, which enables designers to optimize the size of external components and improve efficiency. Furthermore, its wide input voltage range of 3.4V to 65V provides a versatile power solution that accommodates a variety of supply voltages and withstands voltage transients typically found in automotive applications.

The LT8646SEV#WPBF incorporates a unique spread spectrum frequency modulation technique, further reducing EMI emissions. The device also features a low quiescent current, which is crucial for battery-powered systems where power conservation is paramount. Its high efficiency is maintained over a wide output current range by utilizing internal top and bottom high-efficiency power MOSFETs.

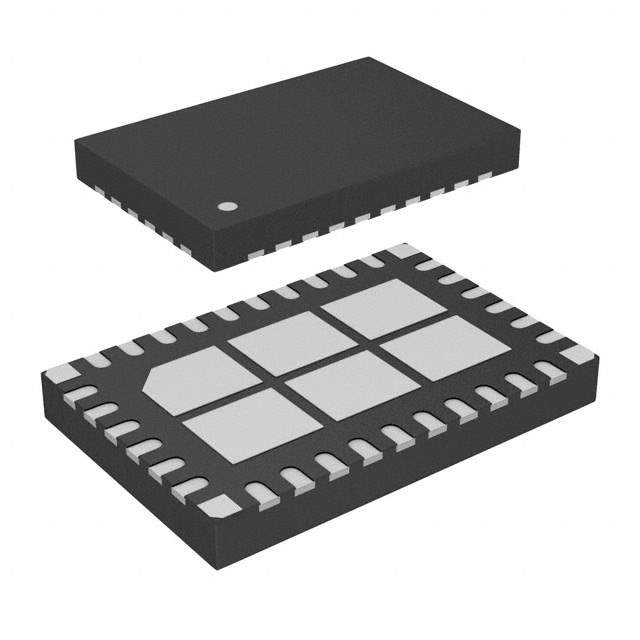

Protection features include internal over-temperature protection, overvoltage and overcurrent protection, which safeguard the device and the system in adverse conditions. The LT8646SEV#WPBF is available in a thermally enhanced 3mm x 5mm QFN package, which provides excellent thermal performance for high-power applications.

In summary, the LT8646SEV#WPBF from Analog Devices Inc. is a robust and efficient solution for applications demanding minimal noise and high efficiency. Its advanced features and comprehensive protection make it a reliable and versatile choice for a wide range of power supply designs.
