Part No 1-1393203-1
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps

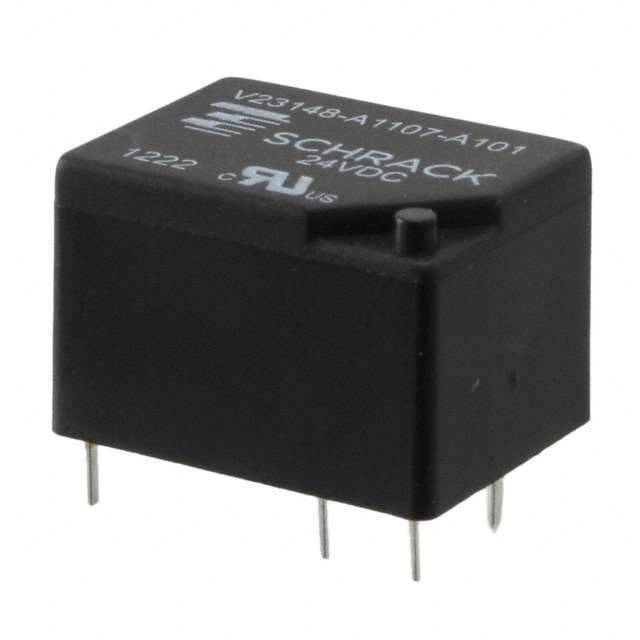

Description Electromechanical Relay 24VDC 1.28KOhm 12A SPDT (( 21.2mm 16.2mm 14.9mm)) THT Power Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 70 °C
Approvals UL
Coil Current 18.75 mA
Coil Power 450 mW
Coil Resistance 1.28 kΩ
Coil Type Non-Latching
Coil Voltage (DC) 24 V
Contact Current Rating 7 A
Contact Material Silver
Contact Voltage Rating (AC) 250 V
Current Rating 7 A
Depth 16.2 mm
Dropout Voltage 2.4 V
ELV Compliant
Height 14.9 mm
Lead Free Lead Free
Length 21.1836 mm
Max Current Rating 12 A
Max Operating Temperature 70 °C
Max Voltage Rating (AC) 400 V
Min Operating Temperature -25 °C
Mount PCB, Through Hole
Number of Contacts 1
Number of Pins 5
Operate Time 5 ms
Packaging Carton
Radiation Hardening No
Ratings IP67
REACH SVHC No SVHC
Relay Type General Purpose
Release Time 3 ms
RoHS Compliant
Switching Capacity 1.75 kW
Termination PC Pin, PCB
Throw Configuration SPDT
Voltage Rating (AC) 400 V
Voltage Rating (DC) 24 V
Weight 9.5 g
Width 16.21 mm
Win Source Part Number 1165294-1-1393203-1
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1-1393203-1 CAD Model

Description

The TE Connectivity 1165294-1-1393203-1 is a general-purpose relay with a coil voltage of 24V DC and a maximum voltage rating of 400V AC.

  • Coil Voltage: 24V DC
  • Maximum Voltage Rating: 400V AC
  • Current Rating: 7A
  • Switching Capacity: 1.75 kW
  • Popularity: Medium
  • Supply and Demand Status: Limited
