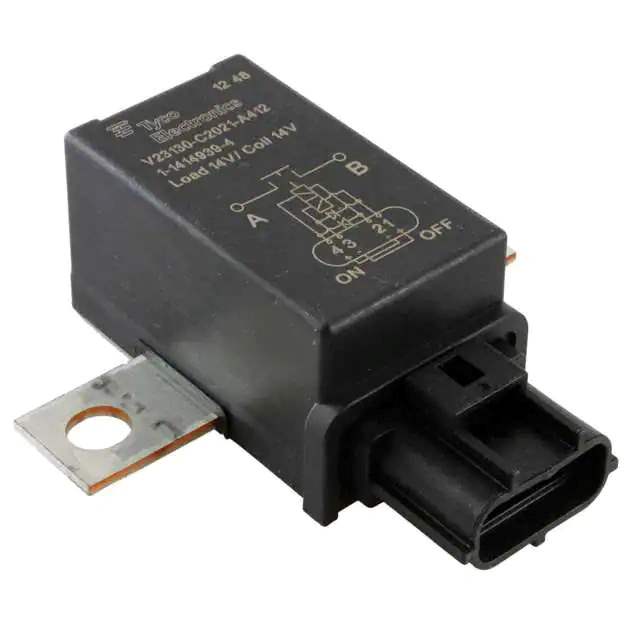

1-1414939-4 Real Image
Same model may have multiple batches, images only for reference.

1-1414939-4

Part No 1-1414939-4
Manufacturer TE Connectivity
Catalog Automotive Relays
Description RELAY AUTO SPST-NO 260A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr TE Connectivity
Series V23130
Package Bulk
Product Status Active
Coil Type Latching, Dual Coil
Coil Voltage 12VDC
Contact Form SPST-NO (DM) (1 Form X)
Contact Rating (Current) 260 A
Switching Voltage 12VDC - Nom
Must Operate Voltage 6 VDC
Operate Time 5 ms
Release Time 5 ms
Features IP54 - Dust Protected, Water Resistant
Mounting Type Chassis Mount
Termination Style Connector
Temperature Range - Operating -40°C ~ 120°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 7W
Coil Resistance 4.7 Ohms
Base Product Number 1414939
Standard Package 24 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 938422-1-1414939-4
Ultra Librarian 3D Model Ultra Librarian 1-1414939-4 CAD Model

Description

The 938422-1-1414939-4 is an automotive relay from the V23130 series by TE Connectivity.

  • Contact Form: SPST-NO (DM) (1 Form X)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 12VDC
  • Coil Resistance: 4.7 Ohms
  • Contact Rating: 260 A
  • Switching Voltage: 12VDC
  • Mounting Type: Chassis Mount
  • Temperature Range: -40°C to 120°C
