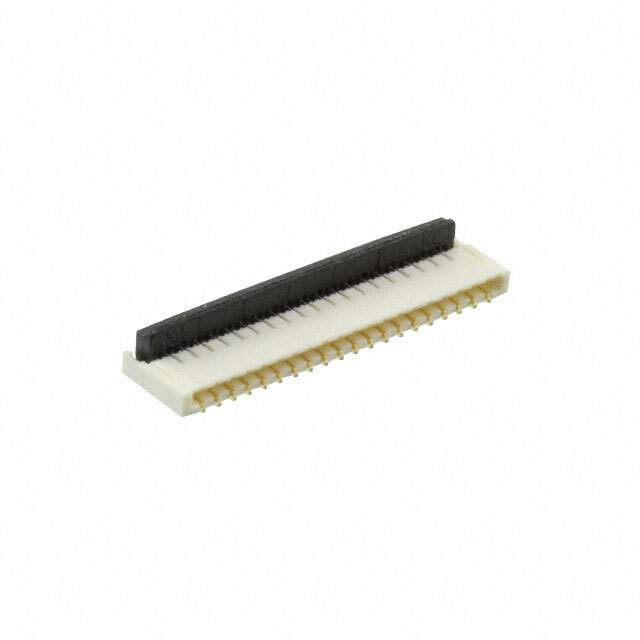

Same model may have multiple batches, images only for reference.

1-2013928-5

Name: 1-2013928-5
Brand: TE Connectivity
SKU: 1333377
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1-2013928-5
Manufacturer	TE Connectivity
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC TOP 39POS 0.30MM R/A / 39 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet	1-2013928-5 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer	TE Connectivity AMP Connectors
Packaging	Reel - TR
Product Status	Obsolete
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top
Number of Positions	39
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.035" (0.88mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Thermoplastic
Actuator Material	Thermoplastic
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-25°C ~ 85°C
Current Rating (Amps)	0.2A
Base Product Number	2013928
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4051
Other Part Number	A108791TR,120139285,2266-1-2013928-5,-1-2013928-5-SI,A108791CT,A108791DKR
Standard Package	3,000
Win Source Part Number	1333377-1-2013928-5
Ultra Librarian 3D Model	Ultra Librarian 1-2013928-5 CAD Model

Alternative Products

Description

TE Connectivity AMP Connectors 1333377-1-2013928-5 is a FFC, FPC (Flat Flexible) Connector Assembly with 39 positions and a pitch of 0.012" (0.30mm).

Features: Zero Insertion Force (ZIF)
Locking: Flip Lock, Backlock
Cable End Type: Tapered
Connector/Contact Type: Contacts, Top
FFC, FCB Thickness: 0.20mm
Voltage Rating: 50V
Housing and Actuator Material: Thermoplastic
Mounting Type: Surface Mount, Right Angle
Temperature Range: -25°C to 85°C
Product Status: Obsolete
ECCN: EAR99
