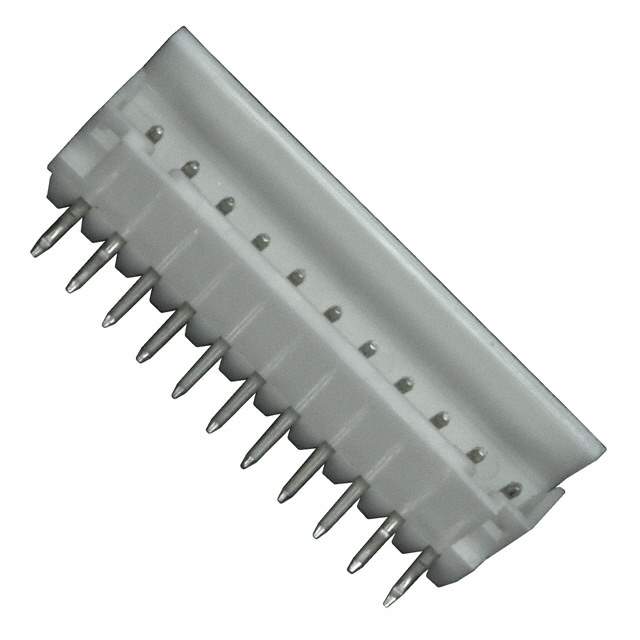

1-292250-1 Real Image
Same model may have multiple batches, images only for reference.

1-292250-1

Part No 1-292250-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 11POS R/A PCB TIN
Datasheet
1-292250-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 11
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.165" (4.20mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.228" (5.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating Varies by Wire Gauge
Voltage Rating 125VAC
Applications General Purpose
Win Source Part Number 1001357-1-292250-1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1-292250-1 CAD Model

Description

The TE Connectivity AMP Connectors 1001357-1-292250-1 is an 11 position male pin header connector with a shrouded-4 wall and a fastening type of detent lock.

  • Voltage Rating: 125VAC
  • Current Rating: Varies by wire gauge
  • Application: General-purpose
  • Mounting: Through Hole, Right Angle
  • Pitch: 0.079" (2.00mm)
  • Flammability Rating: UL94 V-0
  • Contact Finish: Tin
  • Positions Loaded: All
  • Operating Temperature: -65°C to 125°C
