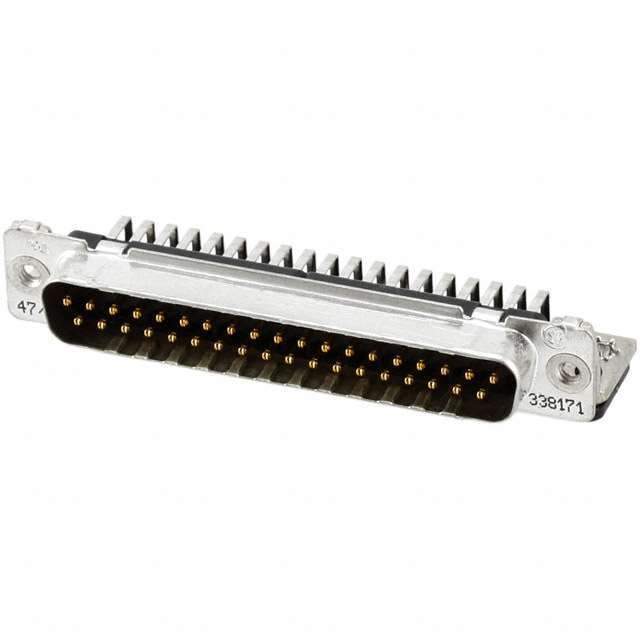

1-338171-2 Real Image
Same model may have multiple batches, images only for reference.

1-338171-2

Part No 1-338171-2
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB PLUG 37POS R/A SOLDER
Datasheet
1-338171-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 37
Number of Rows 2
Shell Size, Connector Layout 4 (DC, C)
Contact Type Signal
Mounting Through Hole, Right Angle
Flange Feature Housing/Shell (4-40)
Termination Solder
Features Board Lock, Grounding Indents
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C to 105°C
Voltage Rating 125V
Current Rating 6A
Color Black
Housing Material Polyester, Glass Filled
Backset Spacing 0.406" (10.30mm)
Win Source Part Number 1001433-1-338171-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1-338171-2 CAD Model

Description

The TE Connectivity AMP Connectors 1001433-1-338171-2 is a medium-popularity electronic component.

  • Type: D-sub connector
  • Positions: 37
  • Color: Black
  • Features: Board lock, grounding indents
  • Pins: Male
  • Contact Type: Signal
  • Termination: Solder
  • Applications: Computer peripherals, telecommunications equipment, and industrial automation systems
