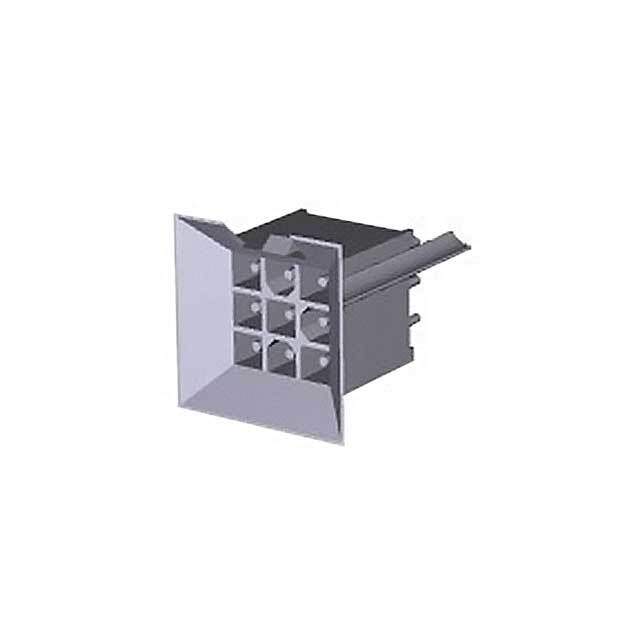

1-794130-1 Real Image
Same model may have multiple batches, images only for reference.

1-794130-1

Part No 1-794130-1
Manufacturer TE Connectivity
Catalog Barrel - Power Connectors
Description CONN HEADER VERT 9POS 4.14MM  /  Connector Header Through Hole 9 position 0.163" (4.14mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.163" (4.14mm)
Number of Positions 9
Number of Rows 3
Row Spacing - Mating 0.163" (4.14mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Board Guide
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) 9.5A
Applications General Purpose
Base Product Number 794130
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-1-794130-1
Standard Package 200
Win Source Part Number 985701-1-794130-1
Ultra Librarian 3D Model Ultra Librarian 1-794130-1 CAD Model

Description

The TE Connectivity AMP Connectors Mini-Universal MATE-N-LOK Header is a rectangular connector with a board guide feature.

  • Positions: 9
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: 3
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Shrouding: Shrouded with 4 Walls
  • Pitch-Mating: 0.163 inches (4.14mm)
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness-Mating: 30.0μin (0.76μm)
  • Applications: General Purpose
  • Temperature Range: -55°C to 105°C
