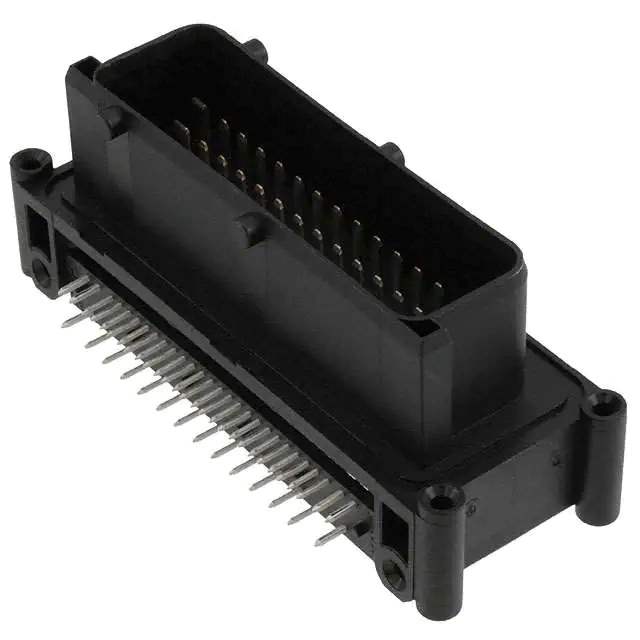

1-967280-1 Real Image
Same model may have multiple batches, images only for reference.

1-967280-1

Part No 1-967280-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 42POS 5MM / Connector Header Through Hole, Right Angle 42 position 0.197" (5.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Junior Power Timer
Package Tray
Product Status Active
Connector Type Plug
Contact Type Tab
Pitch - Mating 0.197" (5.00mm)
Number of Positions 42
Number of Rows 3
Row Spacing - Mating 0.230" (5.84mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Lever Lock
Contact Length - Mating 0.315" (8.00mm)
Contact Length - Post 0.122" (3.10mm)
Insulation Height 1.280" (32.50mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Mounting Flange
Insulation Color Black
Applications Automotive, General Purpose
Base Product Number 967280
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 847566-1-967280-1
Ultra Librarian 3D Model Ultra Librarian 1-967280-1 CAD Model

Description

The Junior Power Timer Male Pins Headers from TE Connectivity are reliable and versatile connectors for various applications.

  • Fastening Type: Lever Lock
  • Rows: Three
  • Positions: 42
  • Voltage Rating: Suitable for Automotive and General Purpose
  • Standard Package: 100 pcs
  • Contact Material: Copper Alloy
  • Insulation Material: Polybutylene Terephthalate
  • Status: Active
