Same model may have multiple batches, images only for reference.

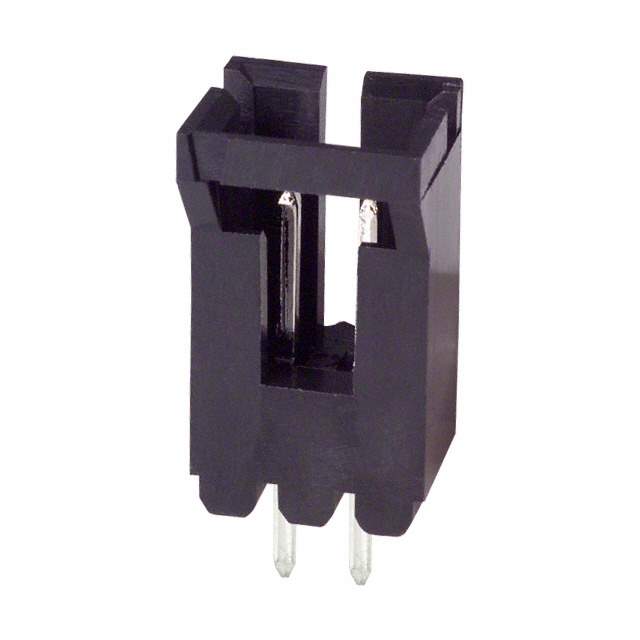

103639-1 Real Image
Same model may have multiple batches, images only for reference.

103639-1

Part No 103639-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 2.54MM / Connector Header Through Hole 2 position 0.100" (2.54mm)
Datasheet
103639-1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU MTE
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.545" (13.84mm)
Insulation Height 0.535" (13.60mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Thermoplastic
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 103639
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names -103639-1-SI,A28525,103639-1-ND,1036391
Standard Package 71
Win Source Part Number 1031948-103639-1
Ultra Librarian 3D Model Ultra Librarian 103639-1 CAD Model

Description

The AMPMODU MTE series male pin header is a 2-position connector with a keying slot.

  • Series: AMPMODU MTE
  • Positions: 2
  • Keying Slot: Yes
  • Connector Style: Board to Board or Cable
  • Positions Loaded: All
  • Rows: Single
  • Shrouded: 4-Wall
  • Termination: Solder
  • Contact Material: Brass
  • Contact Finish: Tin-Lead
  • Contact Finish Thickness (Mating & Post): 100.0µin (2.54µm)
  • Voltage Rating: -
  • Temperature Range: -65°C to 105°C
  • Current Rating: 3A
  • Applications: Automotive, General Purpose, Medical, Telecommunications
  • Packaging: Tube
  • Standard Package: 71
  • Insulation Material: Thermoplastic
  • Flammability Rating: UL94 V-0
