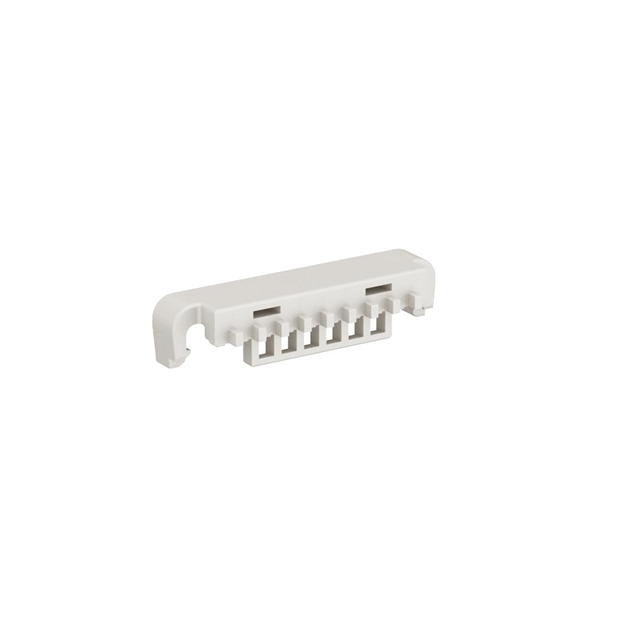

119987-E TE Connectivity Erni
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1310637-119987-E
Manufacturer TE Connectivity Erni
Category Connectors, Interconnects > Rectangular Connectors > Rectangular Connector Accessories
Packaging Bag
Part Status Active
Accessory Type Retainer
Number of Positions 10
For Use With/Related Products iBridge Ultra Female Connector
Ultra Librarian 3D Model Ultra Librarian 119987-E CAD Model

Description

The iBridge Ultra connector’s compact design supports a wide range of applications between control units and local components such as sensors, motors, switches, fans, heating elements, fuses or LEDs.• current rating up to 8 A per contact<br />• compact due to a pitch of 2 mm<br />• different numbers of pins available<br />• crimp contacts for American Wire Gauge (AWG) 22 and AWG 24<br />• secondary locking of the crimp contacts in the housing (TPA)• polarity reversal protection design<br />• double-sided interlocking<br />• specifications are tested according to requirements of USCAR-2 and USCAR-21
