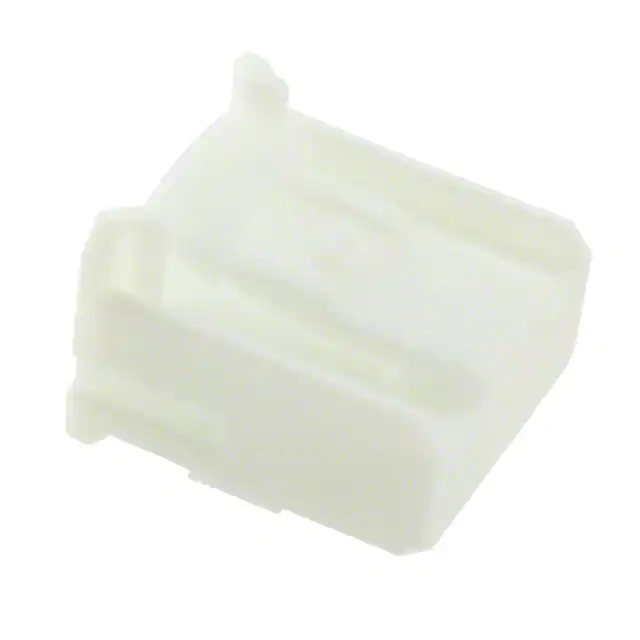

Same model may have multiple batches, images only for reference.

1318386-1

Name: 1318386-1
Brand: TE Connectivity
SKU: 1365863
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1318386-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN PLUG HSG 16POS 2.20MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	TE Connectivity AMP Connectors
Series	.025
Package	Bulk
Product Status	Active
Connector Type	Plug
Contact Type	Female Socket
Number of Positions	16
Pitch	0.087" (2.20mm)
Number of Rows	2
Row Spacing	0.118" (3.00mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Holder
Color	Natural
Features	Retainer
Temperature Range - Operating	-30°C ~ 105°C
Note	Contacts Not Included
Base Product Number	1318386
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1365863-1318386-1
Ultra Librarian 3D Model	Ultra Librarian 1318386-1 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors Rectangular Connector Housing is a versatile and reliable solution for your electrical connection needs.

Manufacturer: TE Connectivity AMP Connectors
Temperature Range: -30°C to 105°C
Connector Type: Plug
Contact Gender: Female Socket
Number of Positions: 16
Number of Rows: 2
Mounting Type: Free Hanging (In-Line)
Fastening Type: Latch Holder
Pitch: 0.087" (2.20mm)
Row Spacing: 0.118" (3.00mm)
Contacts Included: No
Series: .025
Product Status: Active
