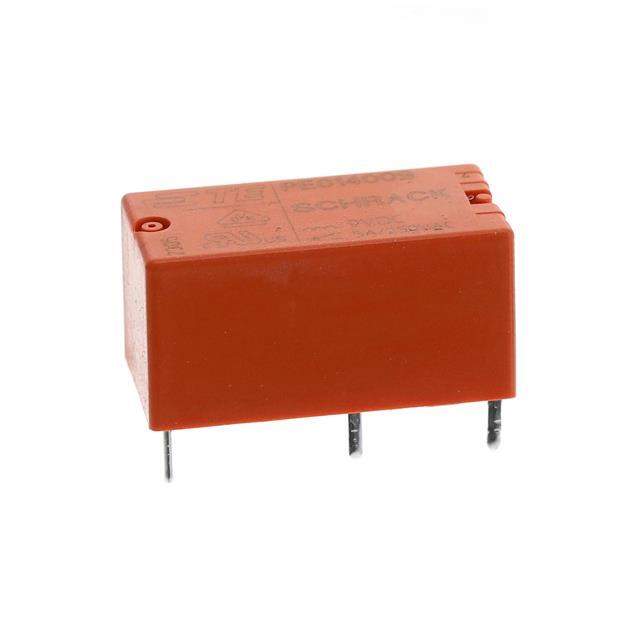

1393219-5 Real Image
Same model may have multiple batches, images only for reference.

1393219-5

Part No 1393219-5
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURP / General Purpose Relay SPDT (1 Form C) 9VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series PE
Package Bulk
Mounting Type Through Hole
Coil Voltage 9VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 5 A
Switching Voltage 400VAC - Max
Coil Current 22.2 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 6.8 VDC
Must Release Voltage 0.9 VDC
Operate Time 8 ms
Release Time 8 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 405 Ohms
Base Product Number 1393219
MSL Level 1 (Unlimited)
REACH Status REACH Affected
HTSUS 0000.00.0000
Other Names PE014009,2266-1393219-5
Standard Package 25
Win Source Part Number 1023397-1393219-5
Ultra Librarian 3D Model Ultra Librarian 1393219-5 CAD Model

Description

The 1023397-1393219-5 is a power relay that is designed to offer high performance and reliability.

  • Contact Rating: 5A
  • Switching Voltage: 400VAC - Max
  • Coil Voltage: 9VDC
  • Coil Resistance: 405 Ohms
