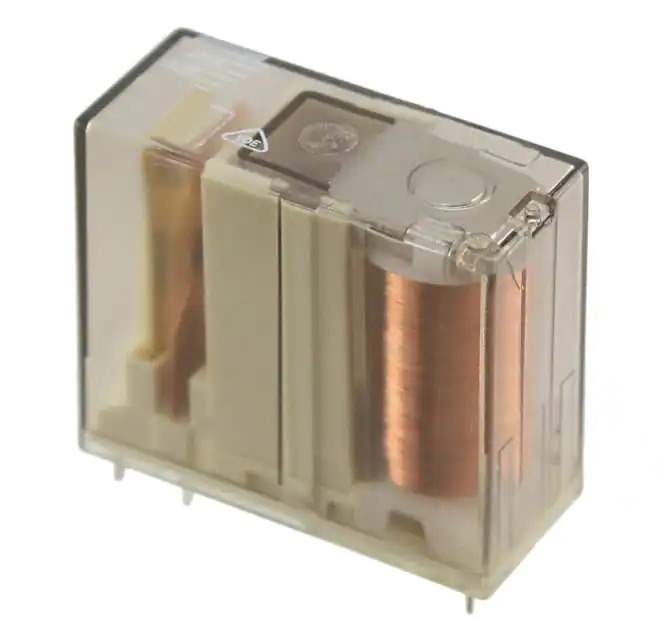

Part No 1393230-4
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RP3SL, SCHRACK
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 400VAC - Max
Coil Current 52 mA
Coil Type Latching, Single Coil
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 18 VDC
Operate Time 30 ms
Release Time 25 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 460 Ohms
Base Product Number 1393230
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 892210-1393230-4
Ultra Librarian 3D Model Ultra Librarian 1393230-4 CAD Model

Description

The 892210-1393230-4 is a power relay from TE Connectivity's RP3SL, SCHRACK series.

  • Relay Type: Power Relay
  • Series: RP3SL, SCHRACK
  • Contact Configuration: SPST-NO (Single-Pole, Single-Throw Normally Open)
  • Contact Rating: 16A
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 24VDC
  • Coil Resistance: 460 Ohms
  • Operating Temperature: -40°C to 70°C
  • Design: Latching, Single-Coil
  • Coil Current: 52mA during operation
  • Package: Tube
  • Mounting: Through-Hole
  • Status: Active
  • Manufacturer: TE Connectivity
