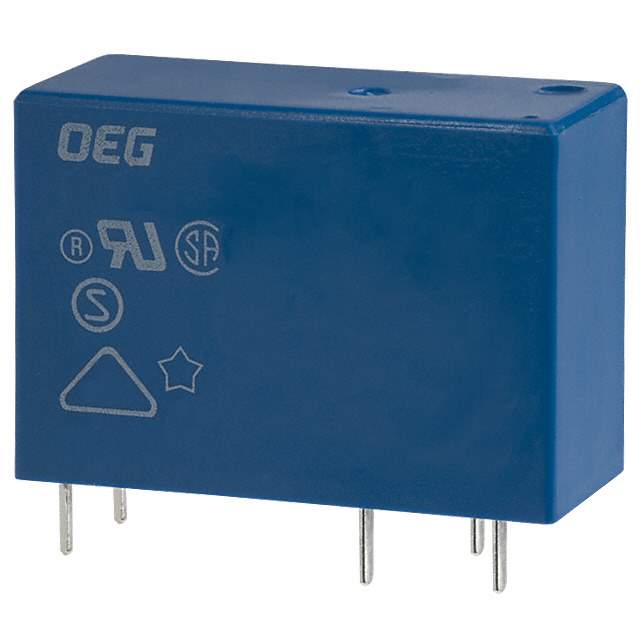

Same model may have multiple batches, images only for reference.

1461373-3

Name: 1461373-3
Brand: TE Connectivity
SKU: 1161404
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	1461373-3
Manufacturer	TE Connectivity
Catalog	Signal Relays, Up to 2 Amps
Description	General Purpose Relay, OMIH Series, Power, Non Latching, SPST-NO, 24 VDC, 16 A RoHS Compliant: Yes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Coil Current	22.5 mA
Coil Power	540 mW
Coil Resistance	1.1 kΩ
Coil Type	Non-Latching
Coil Voltage (DC)	24 V
Contact Current Rating	16 A
Contact Material	Silver, Tin
Contact Voltage Rating (AC)	250 V
Current Rating	16 A
ELV	Compliant
Height	20.5994 mm
Length	29.21 mm
Max Operating Temperature	70 °C
Min Operating Temperature	-30 °C
Mount	Through Hole
Number of Contacts	1
Operate Time	20 ms
Packaging	Bulk
REACH SVHC	No SVHC
Relay Type	General Purpose
Release Time	8 ms
RoHS	Compliant
Termination	PCB
Throw Configuration	SPST
Voltage Rating (AC)	250 V
Voltage Rating (DC)	30 V
Weight	13 g
Width	12.8 mm
Win Source Part Number	1161404-1461373-3
Categories	Signal Relays,Up to 2 Amps
Manufacturer	TE Connectivity
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 1461373-3 CAD Model

Alternative Products

Description

This TE Connectivity General Purpose Relay is a high-quality component designed for PCB termination.

Contact Material: Silver and Tin
Current Rating: 16 A
Contact Current Rating: 16 A
Coil Resistance: 1.1 kΩ
Coil Current: 22.5 mA
Operate Time: 20 ms
Release Time: 8 ms
Coil Power: 540 mW
Throw Configuration: SPST
Coil Voltage: 24 V DC
Voltage Ratings: 250 V AC and 30 V DC
Height: 20.5994 mm
Weight: 13 g
Width: 12.8 mm
RoHS Compliant: Yes
Suitable for: Signal Relays and Applications up to 2 amps
Popularity: Medium
Supply and Demand Status: Limited
