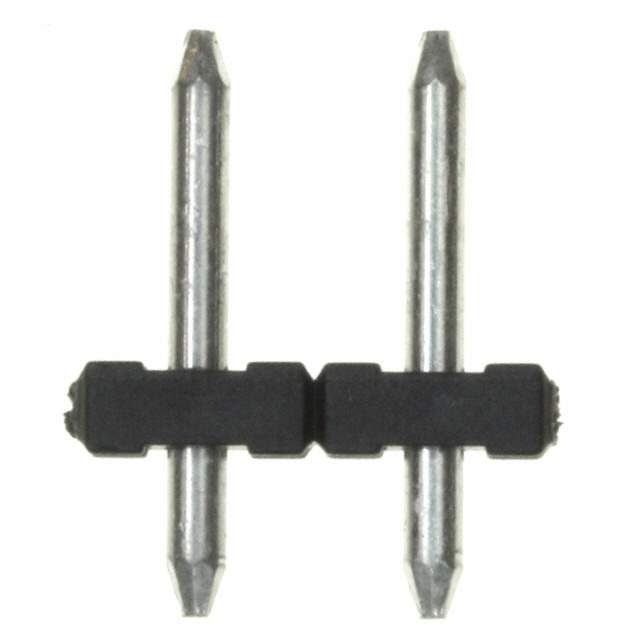

1546931-2 Real Image
Same model may have multiple batches, images only for reference.

1546931-2

Part No 1546931-2
Manufacturer TE Connectivity
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 2POS VERT 5MM / 2 Position Terminal Block Header, Male Pins, Unshrouded 0.197" (5.00mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Type Header, Male Pins, Unshrouded
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.197" (5.00mm)
Header Orientation Vertical
Termination Style Solder
Mounting Through Hole
Current - UL 12 A
Voltage - UL 300 V
Color Black
Contact Mating Finish Tin
Features Side Stacking
Material Flammability Rating UL94 V-0
Contact Material Brass
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length 0.138" (3.50mm)
Insulation Height 0.079" (2.00mm)
Base Product Number 1546931
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 925510201,A97965,15469312,2266-1546931-2
Standard Package 300
Win Source Part Number 1332157-1546931-2
Ultra Librarian 3D Model Ultra Librarian 1546931-2 CAD Model

Description

This is a Header, Male Pins, Unshrouded Terminal Block product from TE Connectivity AMP Connectors.

  • Positions per Level: 2
  • Levels: 1
  • Pitch: 0.197" (5.00mm)
  • Current-UL: 12A
  • Voltage-UL: 300V
  • Contact Material: Brass
  • Standard Package: 300
  • Mounting Type: Through-Hole
