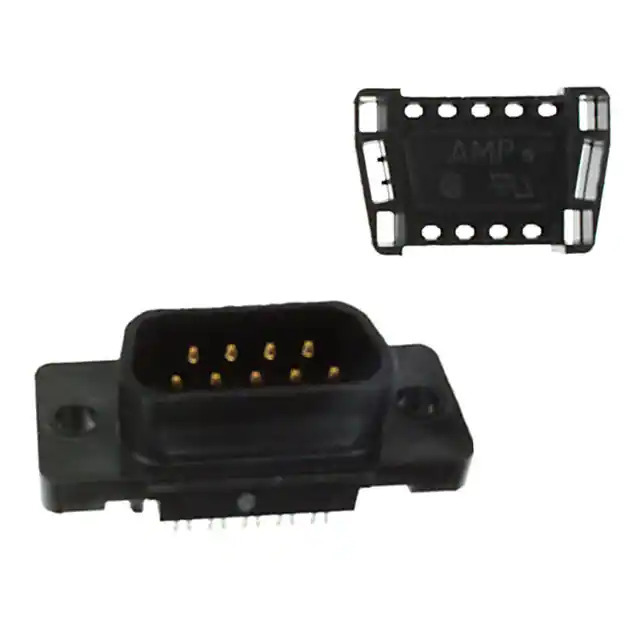

1658615-4 TE Connectivity
Same model may have multiple batches, images only for reference.

1658615-4

Part No 1658615-4
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS IDC / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDF-20
Package Bulk
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination IDC, Ribbon Cable
Shell Material, Finish -
Contact Finish Gold
Contact Finish Thickness -
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1.25A
Backset Spacing -
Features Feed Through
Voltage Rating -
Color Black
Contact Form -
Dielectric Material Thermoplastic
Wire Gauge 26-28 AWG, Stranded or Solid
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 1658615
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365154-1658615-4
Ultra Librarian 3D Model Ultra Librarian 1658615-4 CAD Model

Description

The AMPLIMITE HDF-20 D-Sub Connector Assemblies are reliable and versatile connectors designed for various electronic applications.

  • Connector Type: Plug, Male Pins
  • Termination: IDC, Ribbon Cable
  • Current Rating: 1.25A
  • Wire Gauge: 26-28 AWG
  • Wire Type: Stranded or Solid
  • Contact Finish: Gold
  • Series: AMPLIMITE HDF-20
  • Packaging: Bulk
  • Product Status: Active
