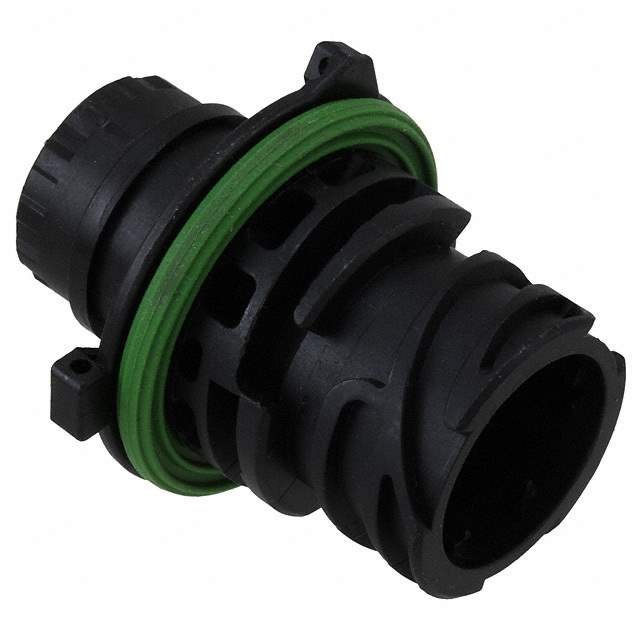

1718230-1 Real Image
Same model may have multiple batches, images only for reference.

1718230-1

Part No 1718230-1
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN RCPT HSNG MALE 7POS PNL MNT / 7 Position Circular Connector Receptacle Housing Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Housings
Manufacturer TE Connectivity Deutsch Connectors
Packaging Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 7
Contact Type Crimp
Contact Size 1.5mm
Mounting Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Fastening Type Bayonet Lock
Orientation A
Shell Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Color Black
Ingress Protection IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating UL94 HB
Shielding Unshielded
Note Contacts Not Included
Contact Shape Circular
Temperature Range - Operating -40°C ~ 120°C
Base Product Number 1718230
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number 1718230-1-ND,A106636,17182301,-1718230-1-LSI,-1718230-1-CSI,-1718230-1-SI
Standard Package 450
Win Source Part Number 1334566-1718230-1
Ultra Librarian 3D Model Ultra Librarian 1718230-1 CAD Model

Description

The TE Connectivity Deutsch Connectors 1334566-1718230-1 is a bulk receptacle housing circular connector for male pins.

  • Positions: 7
  • Contact Type: Crimp
  • Fastening: Bayonet Lock
  • Connector Type: Panel Mount
  • Housing Color: Black
  • Flammability Rating: UL94 HB
  • Shielding: Unshielded
  • Ingress Protection: IP67/IP69K (Dust Tight, Water-Resistant, Waterproof)
  • Shell Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Temperature Range: -40°C to 120°C
  • Mounting Feature: Rear Side Nut Bulkhead
  • Contacts: Not Included
