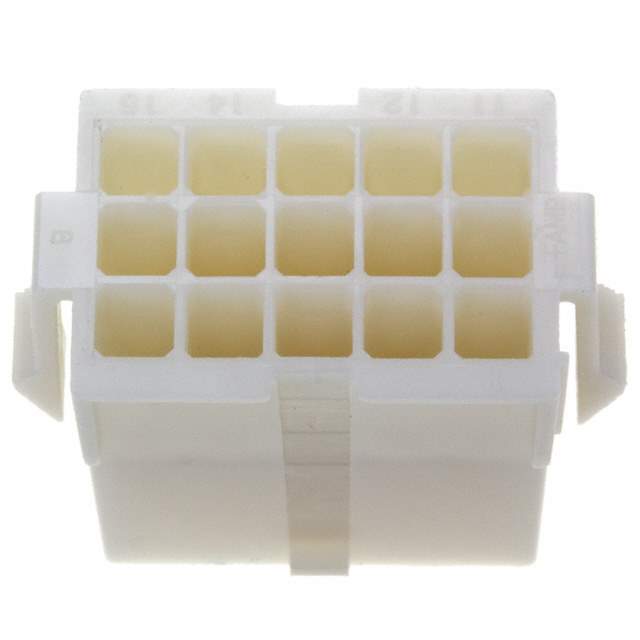

172163-1 Real Image
Same model may have multiple batches, images only for reference.

172163-1

Part No 172163-1
Manufacturer TE Connectivity
Catalog Barrel - Power Connectors
Description CONN CAP 15POS MINI UNIV-MATE  /  15 Rectangular Connectors - Housings Receptacle Natural 0.163" (4.14mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Bulk
Connector Type Receptacle
Contact Type Male or Female
Number of Positions 15
Pitch 0.163" (4.14mm)
Number of Rows 3
Row Spacing 0.163" (4.14mm)
Mounting Type Panel Mount, Snap-In
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Note Contacts Not Included
Base Product Number 172163
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names A25701,1721631
Standard Package 500
Win Source Part Number 1153737-172163-1
Ultra Librarian 3D Model Ultra Librarian 172163-1 CAD Model

Description

The 172163-1 from TE Connectivity AMP Connectors is a Mini-Universal MATE-N-LOK series rectangular connector housing.

  • Positions: 15
  • Pitch: 0.163" (4.14mm)
  • Color: Natural
  • Fastening Type: Locking Ramp
  • Contact Type: Male or Female
  • Rows: 3
  • Row Spacing: 0.163" (4.14mm)
  • Termination: Crimp
  • Packaging: Bulk
  • Contacts Included: No
  • Mounting: Panel Mount or Snap-In
