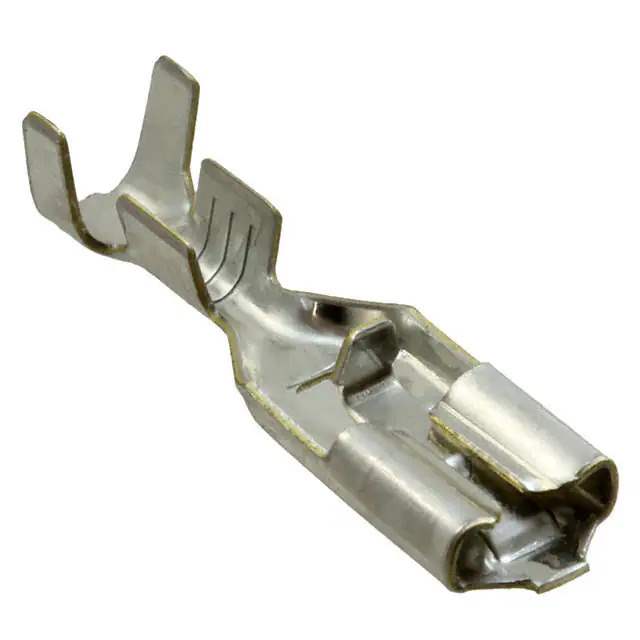

Same model may have multiple batches, images only for reference.

173690-1

Name: 173690-1
Brand: TE Connectivity
SKU: 905514
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	173690-1
Manufacturer	TE Connectivity
Catalog	Terminals
Description	CONN QC RCPT 20-24AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 20-24 AWG Crimp Connector Non-Insulated
Datasheet	173690-1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr	TE Connectivity
Series	Mark II
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Active
Terminal Type	Standard
Gender	Female
Tab Width	0.187" (4.75mm)
Tab Thickness	0.032" (0.81mm)
Length - Overall	0.850" (21.59mm)
Termination	Crimp
Wire Gauge	20-24 AWG
Insulation	Non-Insulated
Mounting Type	Free Hanging (In-Line)
Contact Material	Brass
Contact Finish	Tin
Insulation Diameter	0.059" ~ 0.106" (1.50mm ~ 2.69mm)
Base Product Number	173690
Standard Package	8,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	905514-173690-1
Ultra Librarian 3D Model	Ultra Librarian 173690-1 CAD Model

Alternative Products

Description

The Mark II quick disconnect connector is a versatile and reliable solution for your electrical connections.

Wire Gauge: 20-24 AWG
Termination: Crimp
Contact Finish: Tin
Insulation: Non-Insulated
Tab Width: 0.187" (4.75mm)
Tab Thickness: 0.032" (0.81mm)
Mounting: Free Hanging (In-Line)
Package Quantity: 8,000 pcs
Operating Temperature: -55°C to 125°C
Status: Active
Manufacturer: TE Connectivity
