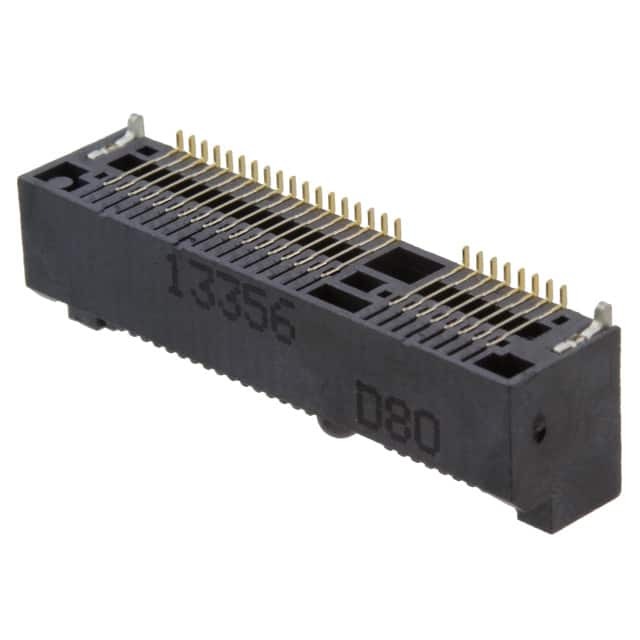

Part No 1759547-1
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP MIN FML 52POS 0.031 / 52 Position Female Connector PCI Express Mini Card Gold 0.031" (0.80mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr TE Connectivity
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Card Type PCI Express Mini Card
Gender Female
Number of Positions 52
Card Thickness 0.039" (1.00mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide
Mounting Type Surface Mount, Right Angle
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness Flash
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Liquid Crystal Polymer (LCP), Glass Filled
Base Product Number 1759547
Standard Package 450 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848282-1759547-1
Ultra Librarian 3D Model Ultra Librarian 1759547-1 CAD Model

Description

The 848282-1759547-1 is an edgeboard connector from TE Connectivity.

  • Applications: PCI Express Mini Card
  • Number of Positions: 52
  • Pitch: 0.031" (0.80mm)
  • Color: Black
  • Board Guide: Yes
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Packaging: Tape & Reel (TR) / Cut Tape (CT)
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
  • Connector Type: Female
  • Termination: Solder
  • Mounting Type: Surface Mount, Right Angle
  • Temperature Range: -55°C to 85°C
