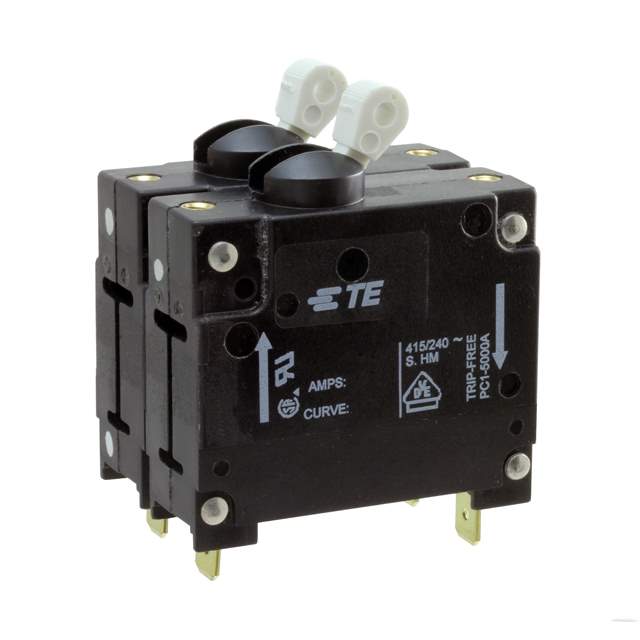

2-1393253-3 Real Image
Same model may have multiple batches, images only for reference.

2-1393253-3

Part No 2-1393253-3
Manufacturer TE Connectivity
Catalog Circuit Breakers
Description Circuit Breaker Magnetic Hydraulic 2Pole 25A 250VAC/415VAC/240VAC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Breaker Type Magnetic (Hydraulic Delay)
Current Rating 25 A
ELV Non-Compliant
Height 50.8 mm
Lead Free Contains Lead
Length 51.89 mm
Max Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Panel
Number of Poles 2
Panel Thickness 2.794 mm
RoHS Compliant
Termination Quick Connect
Time to Trip 100 s
Voltage Rating (AC) 250 V
Width 38.1 mm
Win Source Part Number 1137088-2-1393253-3
Categories Circuit Breakers
Manufacturer TE Connectivity
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2-1393253-3 CAD Model

Description

The 1137088-2-1393253-3 is a magnetic (hydraulic delay) circuit breaker manufactured by TE Connectivity.

  • Type: Magnetic (hydraulic delay) circuit breaker
  • Popularity: Medium
  • Supply and Demand: Limited
  • Current Rating: 25A
  • RoHS Compliance: Yes
  • Termination: Quick connect
