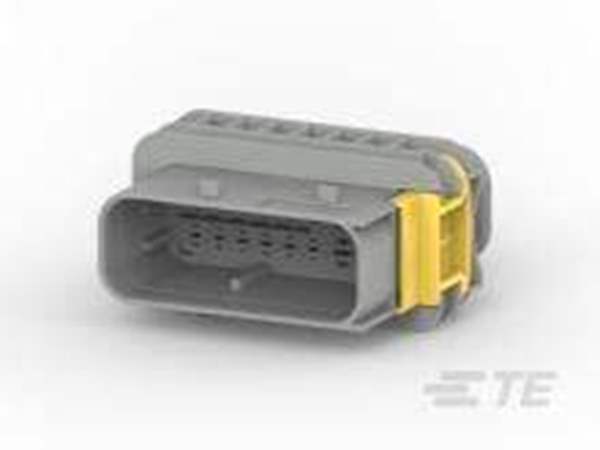

2-1564528-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

2-1564528-1

Part No 2-1564528-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN PLUG HSG 16POS
Datasheet
2-1564528-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308726-2-1564528-1
Category Connectors, Interconnects >Rectangular Connectors >Housings
Mfr TE Connectivity AMP Connectors
Packaging  Bulk
Part Status Active
Connector Type Plug
Contact Type Tab
Number of Positions 16
Number of Rows 2
Row Spacing 0.236" (6.00mm)
Mounting Type Free Hanging (In-Line)
Ultra Librarian 3D Model Ultra Librarian 2-1564528-1 CAD Model

Description

16 Rectangular Connectors - Housings Plug Gray
