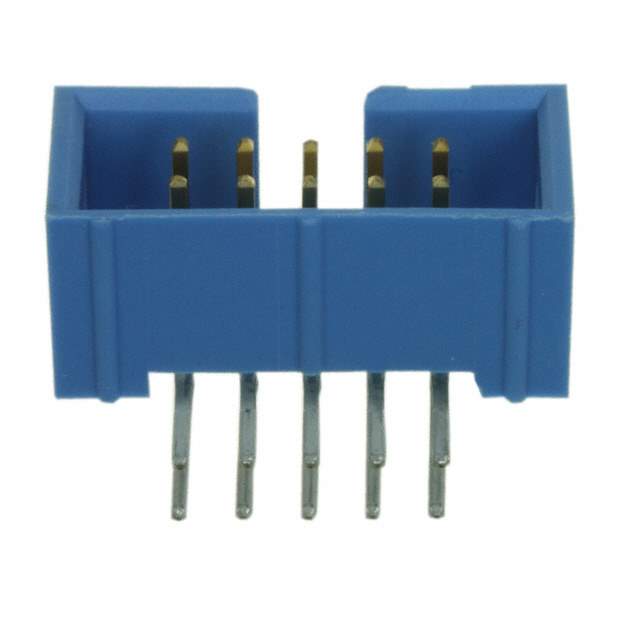

TE Connectivity AMP Connectors presents a Through Hole, Right Angle Header Connector from TE Connectivity AMP Connectors with a keying slot and a shrouded 4 wall.

• Connector Type: Male Pin
• Positions Loaded: All
• Number of Rows: 2
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Material: Phosphor Bronze
• Insulation Material: Polybutylene Terephthalate (PBT)
• Voltage Rating: 250VAC
• Material Flammability Rating: UL94 V-0
• Pitch Mating: 0.100" (2.54mm)
• Contact Finish-Mating: Gold (30.0μin (0.76μm))
• Contact Finish-Post: Tin (100.0μin (2.54μm))
• Insulation Color: Blue
• Row Spacing-Mating: 0.100" (2.54mm)
• Contact Length-Post: 0.102" (2.60mm)
• Insulation Height: 0.350" (8.89mm)
• Contact Shape: Square
• Temperature Range: -65°C to 105°C
• Current Rating: 1A per contact
• Manufacturer Pack Quantity: 50
