2-292208-4
Same model may have multiple batches, images only for reference.

2-292208-4

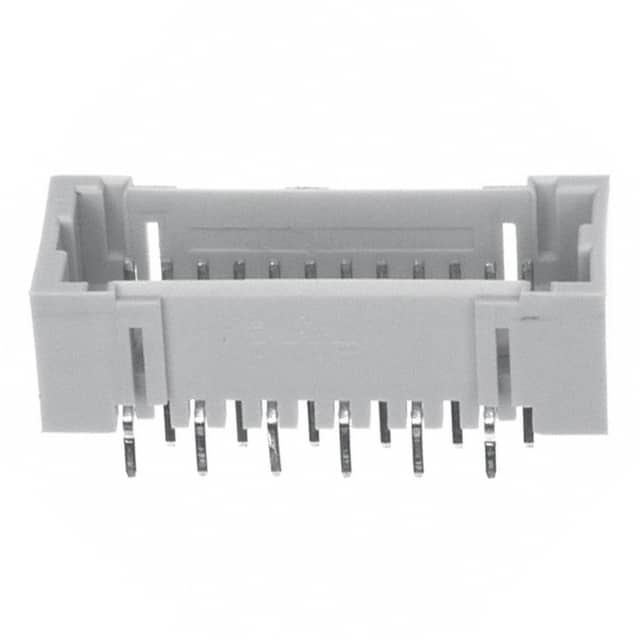

Part No 2-292208-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 24POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Mini CT
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 24
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.114" (2.90mm)
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.291" (7.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Gray
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 50VAC
Applications General Purpose
Base Product Number 292208
Standard Package 600 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854635-2-292208-4
Ultra Librarian 3D Model Ultra Librarian 2-292208-4 CAD Model

Description

The 854635-2-292208-4 is a rectangular connector header with male pins from the Mini CT series. It is manufactured by TE Connectivity, offering reliable performance and is widely used in general purpose applications.

  • Positions: 24
  • Feature: Board Guide
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Row: Dual
  • Termination: Kinked Pin with Solder
  • Fastening Type: Detent Lock
  • Package: Tray
  • Package Quantity: 600 pieces
  • Contact Material: Brass
  • Voltage Rating: 50VAC
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Insulation Color: Gray
  • Application: Board to Cable/Wire
  • Mating Pitch: 0.059 inches (1.50mm)
  • Contact Finish (Mating): Tin
  • Contact Length (Mating): 0.114 inches (2.90mm)
  • Contact Finish (Post): Tin
  • Contact Length (Post): 0.118 inches (3.00mm)
  • Temperature Range: -30°C to 105°C
  • Compliance: ECCN standards.69.4040
