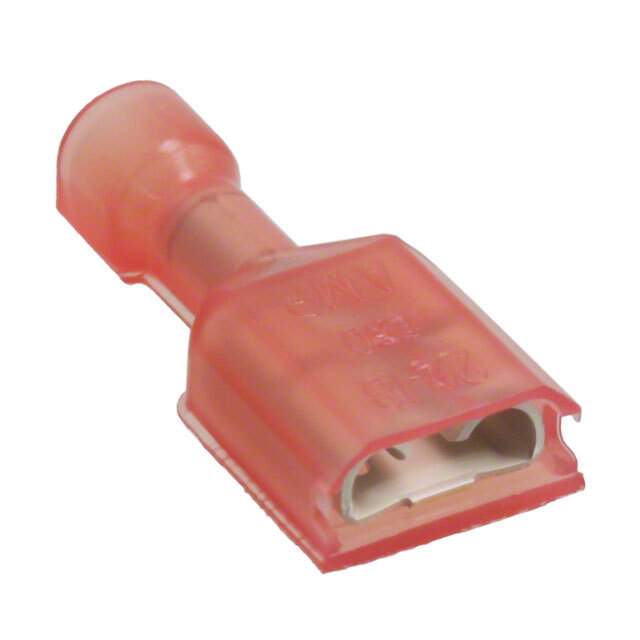

2-520184-4 Real Image
Same model may have multiple batches, images only for reference.

2-520184-4

Part No 2-520184-4
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 18-22AWG 0.250
Datasheet
2-520184-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.855" (21.72mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Red
Contact Finish Tin
Insulation Diameter 0.135" (3.43mm)
Win Source Part Number 1003444-2-520184-4
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 2-520184-4 CAD Model

Description

TE Connectivity AMP Connectors brings you the 1003444-2-520184-4 connector.

  • Insulation: Fully insulated
  • Termination Style: Crimp
  • Wire Gauge: 18-22 AWG
  • Gender: Female
  • Mounting Style: Free hanging (in-line)
  • Terminal Type: Standard
  • Overall Length: 0.855 inches (21.72mm)
  • Contact Finish: Tin
  • Tab Width: 0.250 inches (6.35mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Insulation Diameter: 0.135 inches (3.43mm)
  • Supply and Demand Status: Currently balanced
