Same model may have multiple batches, images only for reference.

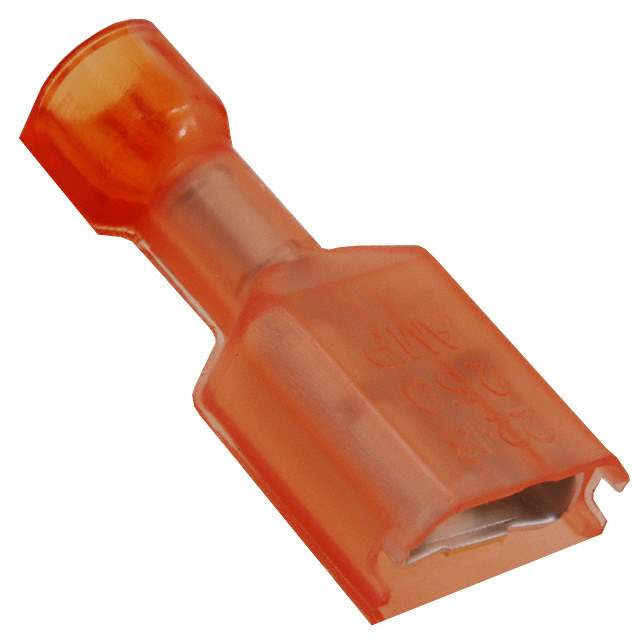

2-520405-2 Real Image
Same model may have multiple batches, images only for reference.

2-520405-2

Part No 2-520405-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 18-22AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.855" (21.72mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.060" ~ 0.135" (1.52mm ~ 3.43mm)
Base Product Number 520405
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27853-ND,A27854TR,-2-520405-2-CSI,A27853,2-520405-2-ND,25204052,A27854CT,-2-520405-2-SI
Standard Package 2,200
Win Source Part Number 1333604-2-520405-2
Ultra Librarian 3D Model Ultra Librarian 2-520405-2 CAD Model

Description

The TE Connectivity AMP Connectors 1333604-2-520405-2 is a quick disconnect connector with a fully insulated female socket.

  • Termination: Crimp
  • Wire Gauge: 18-22 AWG
  • Mounting: Free-Hanging (In-Line)
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
