Same model may have multiple batches, images only for reference.

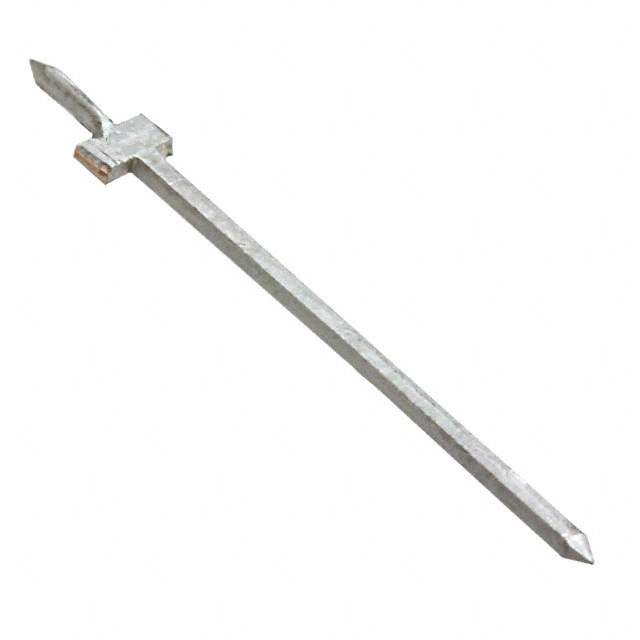

2-928776-7 Real Image
Same model may have multiple batches, images only for reference.

2-928776-7

Part No 2-928776-7
Manufacturer TE Connectivity
Catalog Terminals
Description CONN PC PIN SQUARE 0.025 TIN / Single Post Terminal Connector Through Hole Tin 0.025" (0.64mm) Square
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>PC Pin, Single Post Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Single Post
Terminal Style Pin Retention
Pin Size - Above Flange 0.025" (0.64mm) Square
Pin Size - Below Flange 0.025" (0.64mm) Square
Length - Overall 0.835" (21.21mm)
Mounting Hole Diameter 0.035" (0.89mm)
Mounting Through Hole
Termination Press-Fit
Insulation Non-Insulated
Board Thickness 0.063" (1.60mm)
Contact Material Phosphor Bronze
Contact Finish Tin
Contact Finish Thickness 78.7µin (2.00µm)
Base Product Number 928776
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -2-928776-7-SI,A118914CT,A118914TR,2-928776-7-ND
Standard Package 50,000
Win Source Part Number 1333607-2-928776-7
Ultra Librarian 3D Model Ultra Librarian 2-928776-7 CAD Model

Description

TE Connectivity AMP Connectors presents a pack of 50,000 single post connectors with a mounting hole diameter of 0.035 inches and a flange diameter of 0.

  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin
  • Contact Finish Thickness: 78.7 microns
  • Terminal Type: Pin Retention
  • Insulation: Non-Insulated
  • Terminal Style: Through-Hole Press-Fit
  • Board Thickness: 0.063 inches
  • Pin Size: 0.025 inches Square
  • Length Above Flange: 0
  • Length Below Flange: 0.835 inches
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
