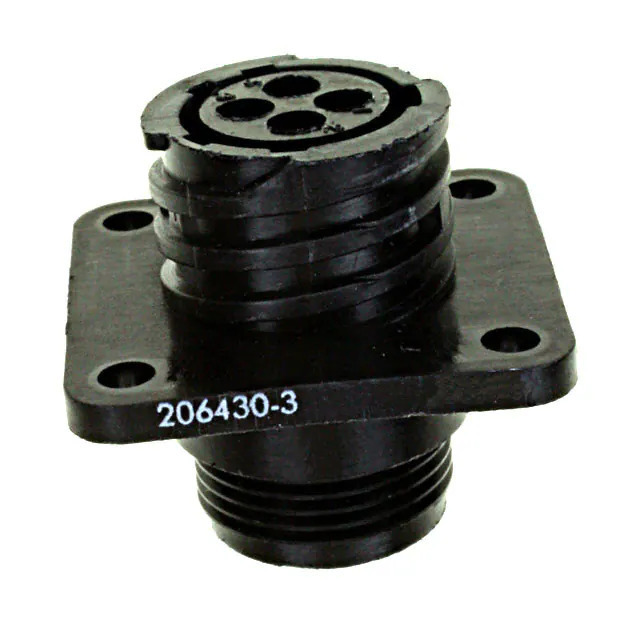

206430-3

Part No 206430-3
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN RCPT HSNG FMALE 4POS PNL MT / 4 Position Circular Connector Receptacle Housing Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Housings
Mfr TE Connectivity AMP Connectors
Series CPC Series 1
Package Bulk
Product Status Active
Connector Type Receptacle Housing
Type For Female Sockets
Number of Positions 4
Shell Size - Insert 11-4
Shell Size, MIL -
Contact Type Crimp
Contact Size 16
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Threaded
Orientation A
Shell Material Polyamide (PA), Nylon
Shell Finish -
Housing Color Black
Ingress Protection Environment Resistant
Material Flammability Rating UL94 V-0
Features -
Shielding Unshielded
Note Contacts Not Included
Includes -
Insert Material Thermoplastic
Contact Shape Circular
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 206430
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1363759-206430-3
Ultra Librarian 3D Model Ultra Librarian 206430-3 CAD Model

Description

The TE Connectivity AMP Connectors CPC Series 1 is a panel mount receptacle housing designed for female sockets.

  • Temperature Range: -55°C to 105°C
  • Shielded: Unshielded
  • Contact Type: Crimp
  • Number of Positions: 4
  • Fastening Type: Threaded
  • Contact Shape: Circular
  • Housing Material: Polyamide (PA) and Nylon
  • Mounting Feature: Flange
  • Orientation: A
  • Color: Black
  • Contacts Included: No
  • Product Status: Active
  • Series: CPC
