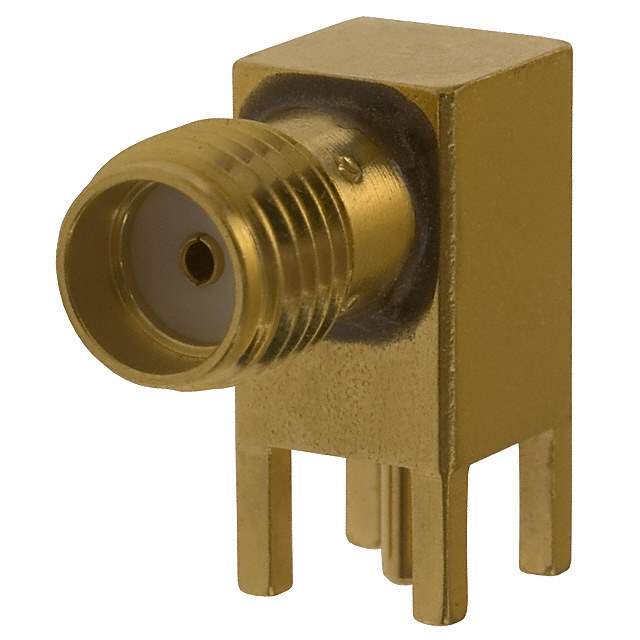

221790-1 Real Image
Same model may have multiple batches, images only for reference.

221790-1

Part No 221790-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF)
Description CONN SMA JACK R/A 50 OHM PCB  /  SMA Connector Jack, Female Socket 50Ohm Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr TE Connectivity AMP Connectors
Package Bulk
Product Status Obsolete
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Threaded
Frequency - Max 4 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Stainless Steel
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 335 V
Mating Cycles 500
Insertion Loss 0.3dB
Base Product Number 221790
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Names 2266-221790-1,2217901,-221790-1-SI,A24692,221790-1-ND
Standard Package 1
Win Source Part Number 1216194-221790-1
Ultra Librarian 3D Model Ultra Librarian 221790-1 CAD Model

Description

TE Connectivity AMP Connectors' SMA female socket jack connector is a high-performance coaxial connector that operates at a voltage rating of 335 V and a frequency of 4 GHz.

  • Voltage Rating: 335 V
  • Frequency: 4 GHz
  • Fastening Type: threaded
  • Contact Termination: solder
  • Material: stainless steel
  • Finish: gold
  • Impedance: 50 Ohm
  • Insertion Loss: 0.3dB
  • Lifecycle Status: obsolete
  • REACH Affected: Yes
