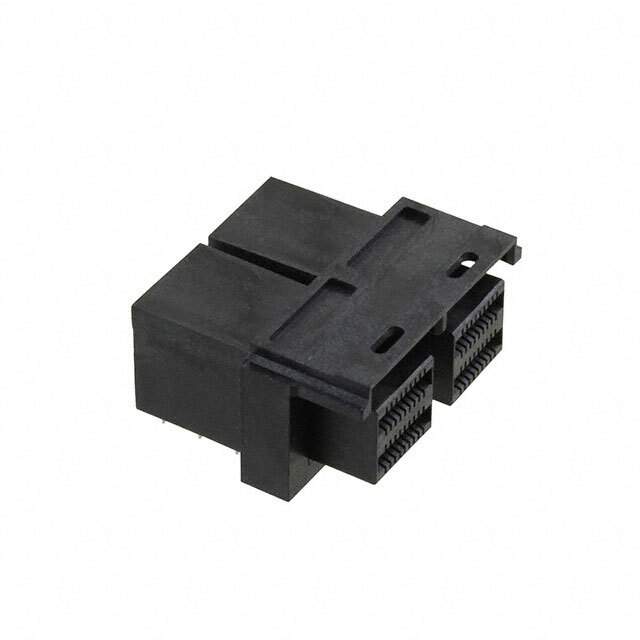

2227581-1 Real Image
Same model may have multiple batches, images only for reference.

2227581-1

Part No 2227581-1
Manufacturer TE Connectivity
Catalog Pluggable Connectors
Description CONN MINI HD SAS RCPT 1X2 72P RA  /  72 (36 x 2) Position SAS, Mini HD Receptacle (1x2) Connector Press-Fit Through Hole, Right Angle
Datasheet
2227581-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors
Mfr TE Connectivity AMP Connectors
Package Tray
Connector Style Receptacle (1x2)
Connector Type SAS, Mini HD
Number of Positions 72 (36 x 2)
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Base Product Number 2227581
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A123724,2227581-1-ND,-2227581-1-CSI,-2227581-1-SI
Standard Package 48
Win Source Part Number 1189616-2227581-1
Ultra Librarian 3D Model Ultra Librarian 2227581-1 CAD Model

Description

The TE Connectivity AMP Connectors 2227581-1 is a pluggable connector with 72 positions, featuring SAS and Mini HD connector types.

  • Positions: 72
  • Connector Types: SAS and Mini HD
  • Termination: Press-fit
  • Package: Tray
  • Connector Style: Receptacle (1x2)
  • Standard Package: 48
  • Mounting Type: Through-hole
  • Orientation: Right-angled
  • REACH: Unaffected
  • ECCN: EAR99
