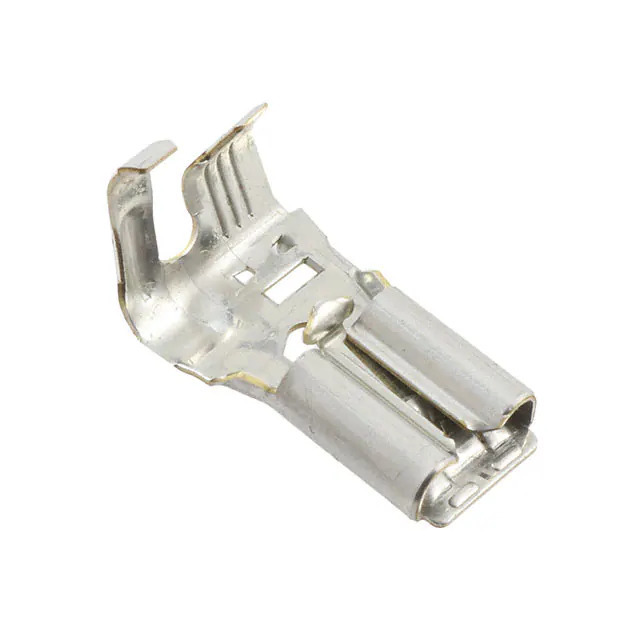

2232343-1 TE Connectivity
Same model may have multiple batches, images only for reference.

2232343-1

Part No 2232343-1
Manufacturer TE Connectivity
Catalog Terminals
Description PL EX 250 REC 18-12 AWG 0.40 X 2 / 0.250" (6.35mm) Quick Connect Female 12-18 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Positive Lock EX
Package Tape & Reel (TR)
Product Status Active
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.307" (7.80mm)
Length - Overall -
Termination Crimp
Wire Gauge 12-18 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.110" ~ 0.161" (2.79mm ~ 4.09mm)
Base Product Number 2232343
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364745-2232343-1
Ultra Librarian 3D Model Ultra Librarian 2232343-1 CAD Model

Description

The TE Connectivity AMP Connectors 2232343-1 is an active electronic component in the connectors, interconnects - terminals category.

  • MSL: Not Specified
  • Series: Positive Lock EX
  • Packaging: Tape & Reel (TR)
  • Wire Gauge: 12-18 AWG
  • Termination: Crimp
  • Gender: Female
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Insulation Diameter: 0.110" ~ 0.161" (2.79mm ~ 4.09mm)
