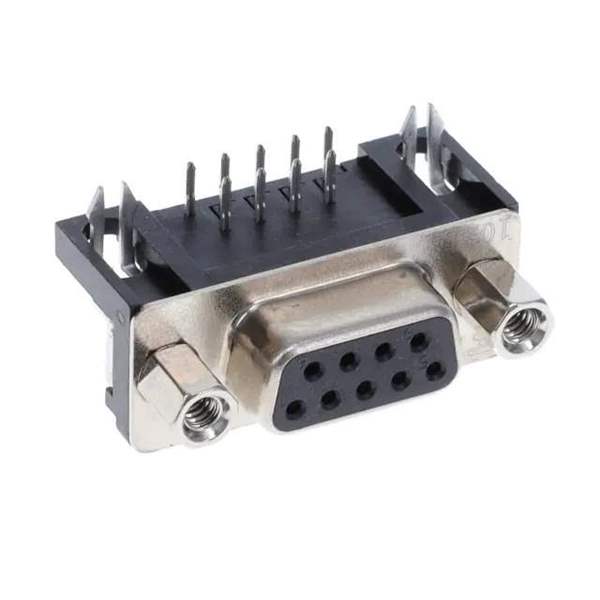

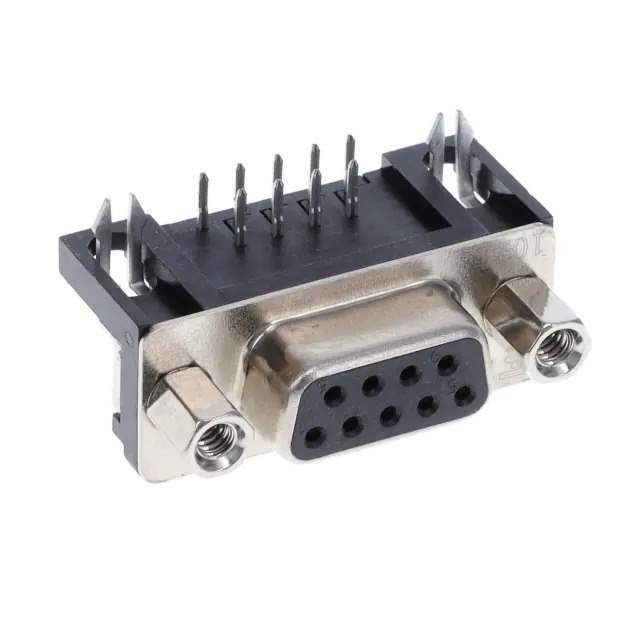

2311765-1 Real Image
Same model may have multiple batches, images only for reference.

2311765-1

Part No 2311765-1
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing 0.318" (8.08mm)
Features Board Lock
Color Black
Dielectric Material Polyamide (PA9T), Nylon 9T, Glass Filled
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 2311765
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 905983-2311765-1
Ultra Librarian 3D Model Ultra Librarian 2311765-1 CAD Model

Description

The AMPLIMITE HD-20 D-Sub connector assembly is a high-density and high-performance solution for data and signal transmission.

  • Positions: 9
  • Color: Black
  • Connector Type: Receptacle
  • Gender: Female Sockets
  • Contact Type: Signal
  • Contact Finish: Gold
  • Termination Type: Solder
  • Package: Tray
  • Package Quantity: 100
  • Temperature Range: -55°C to 105°C
